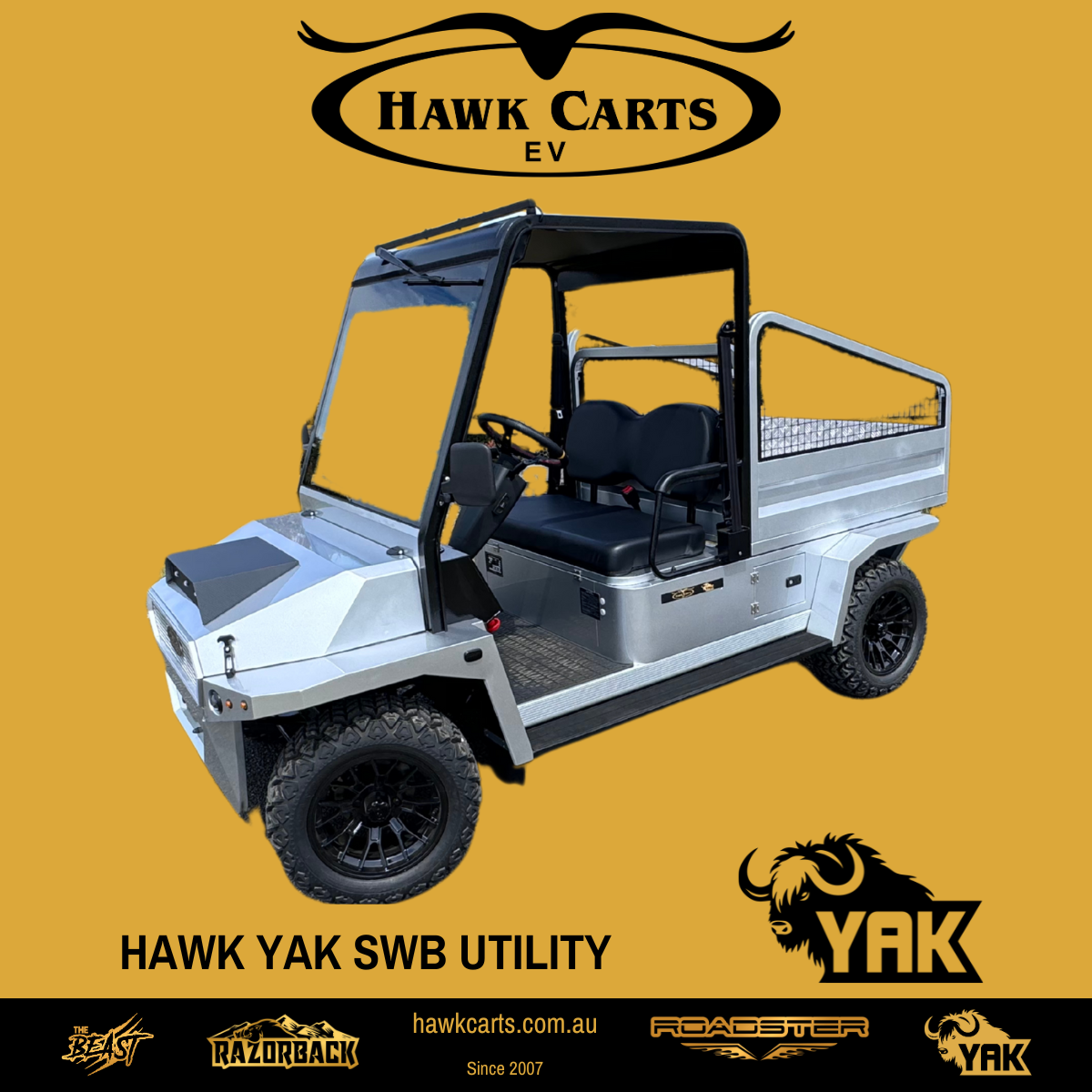

Hawk Yak SWB Utility Plug-In Hybrid 72V Lithium - 7.5KW motor
The Hawk Yak SWB Utility is built for the toughest jobs and the most challenging terrains. With a powerful 7.5KW motor and a 72V lithium battery, this vehicle is capable of more than 100km per charge. Thanks to the petrol range extender generator, you can travel an additional 42kms.
This rugged utility vehicle features a rear diff lock to get you through the toughest terrain, ensuring you never get stuck. Enjoy modern connectivity with an Apple CarPlay/Android ready stereo and ease your driving experience with power steering and 4-wheel hydraulic disc brakes, providing reliable stopping power in all conditions.
The optional 5000W inverter allows you to use power tools even in the most remote locations. The vehicle can carry up to 400kg in the rear tray, which includes an electric/hydraulic tray lift for easy loading and unloading. It can tow up to 2 tonnes with a ball weight of 200kg, provided the trailer has independent brakes. Additionally, an optional winch is available to further enhance the vehicle's versatility.
Key Components
Key Components
Motor: Permanent magnet synchronous motor 7.5KW
Controller: Permanent magnet synchronous motor controller 72V 350A
Brake system: 4 wheel hydraulic disc brakes
Battery: Lithium-ion 76.8V 180Ah (5-Year Warranty)
Accelerator: Non-contact angle sensor accelerator (completely sealed & waterproof)
Charger: On Board Smart 72V 25A charger (IP67 waterproof)
Rear axle: Three-stage transmission rear axle, with electromagnetic brake
Performance and Dimensions
Performance and Dimensions
Front/Rear Wheel Track: 1195/1205mm
Wheelbase: 2190mm
Ground clearance: 180mm
Minimun turning radius: 3.6m
Maximum speed: 5-40kph programable with fast & slow switch
Gradeability: 1 in 2.5 40%
Range(flat ground): 100km (180km with 250Ah battery)
Net weight: 787kg (including 105kg battery)
Vehicle dimension(L*W*H): 3220*1470*1910 mm
Rear Tray Dimension (L*W*H): 1270*1190*355mm
Standard configuration
Standard configuration
Main Display: Digital Meter, electric meter, speedo, fast speed, slow speed display
Stereo: Apple CarPlay/Android ready Stereo System
Seat: Low back soft seat
Windshield: AS1 laminated glass
Steering system: One-way gear, rack steering system (automatic clearance compensation and power steering function)
Suspension: Front & Rear Multi-link 2 independent coil spring suspension
Wheels: All-Terrain tread pattern tye with 14" aluminium rim
Vehicle Exterior Trimming: Sheet metal electrolytic board, DuPont spray paint coloring
Bottom plate: Aluminum pattern bottom plate
Chassis: LG700XL steel beam, cathodic electrophoresis + plastic spray anti-rust
Seatbelts: Three-point

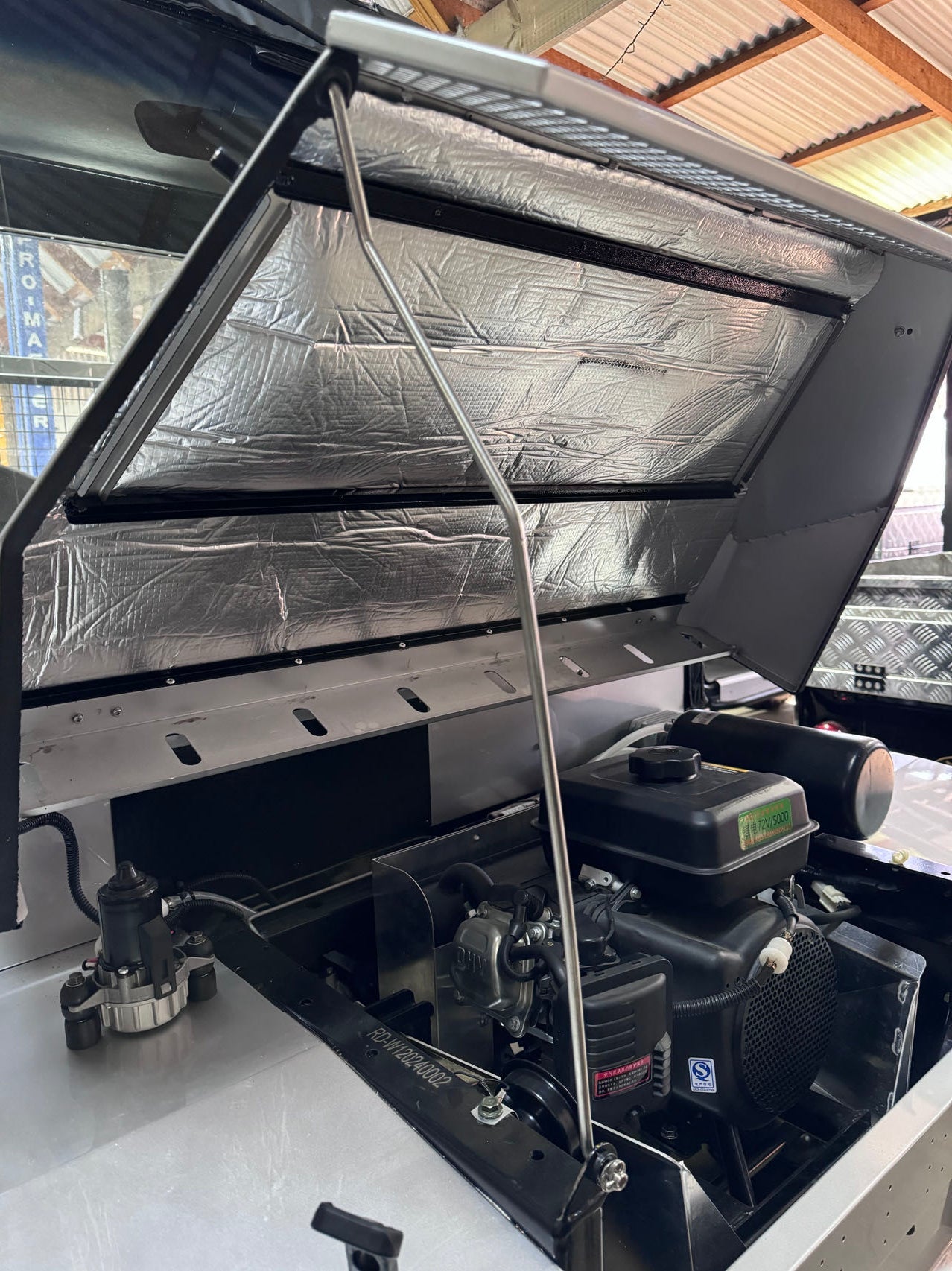

Range extender (petrol single cylinder engine): 72V 5KW Air-cooled
Cruise Control
Accessories
Accessories
- Roof LED Combo Amber Beacon/Light Bar
- Wet weather curtains
- Winch (3000lb)
- Upgraded Seats
- 5000W Invertor
- Underbody Lights
