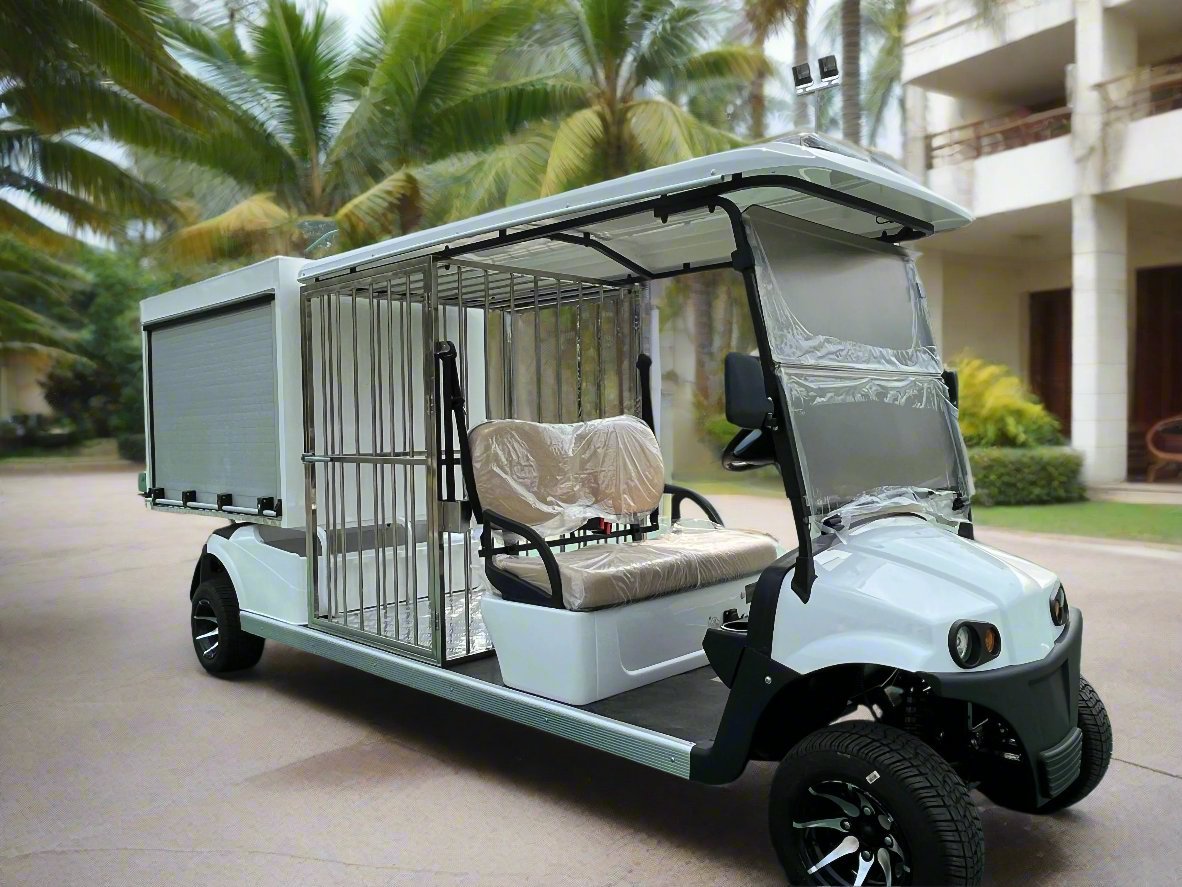

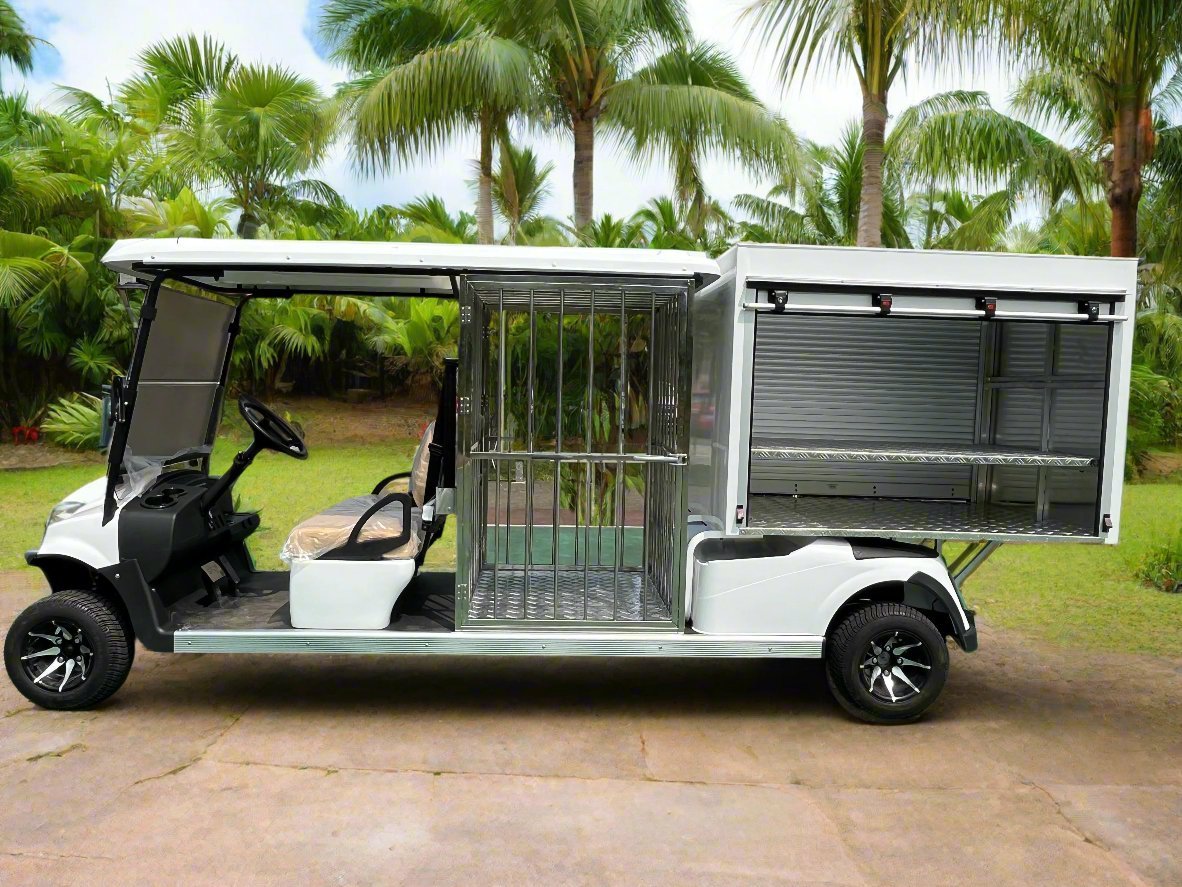

Razorback XLWB Linen Laundry Cart
Razorback XLWB Linen Laundry Cart
The Razorback Linen/Laundry Cart is designed to streamline operations at resorts by making deliveries more efficient for staff. Here are some of the features that contribute to its ease of use and functionality:
- Performance: Engineered for reliable and smooth performance in resort environments.
- Power Supply: Equipped with a robust electric power supply for extended use.
- Suspension: Advanced suspension system to handle various terrains within the resort.
- Chassis: Durable chassis construction to withstand the demands of frequent use.
- Accessories: A range of accessories can be added to customise the cart for specific needs.
These features ensure that the Razorback Linen/Laundry Cart can handle the daily demands of resort operations, helping staff to transport goods and equipment efficiently and comfortably.
Performance
Performance
Maximum Speed: 5-30kmh (adjustable)
Maximum Travel Distance: 80km
Slope Climbing Capacity: 30%
Turning Radius: 4.8m
Weight: 500kg
Power Supply
Power Supply
Battery: 48V 100Ah Lithium (5-Year Warranty)
Motor: 48V5KW
Controller: Curtis DC48V/400A
Accelerator: Adjustable Inductive Accelerator
Charger: RD On-Board Charger 48V 17A
Suspension
Suspension
Front: Independent A-arm, coil over shocks
Rear: Semi-independent - spring hydraulic cushioning
Steering: Dual direction gear, rack steering system
Braking: 4 wheel hydraulic disc brakes w/ auto electro-mechanical park brake
Chassis
Chassis
Chassis: High Strength Aluminium Structural Main Girder
Wheel Base: 2325mm
Tyres: 20.5*8-10
Ground Clearance: 150mm
Dimensions
Dimensions
Overall Dimensions
Width: 1190
Length: 4500mm
Height: 1900mm
Cabinet Dimensions
Width: 1100mm
Length: 1600mm
Height: 1150mm

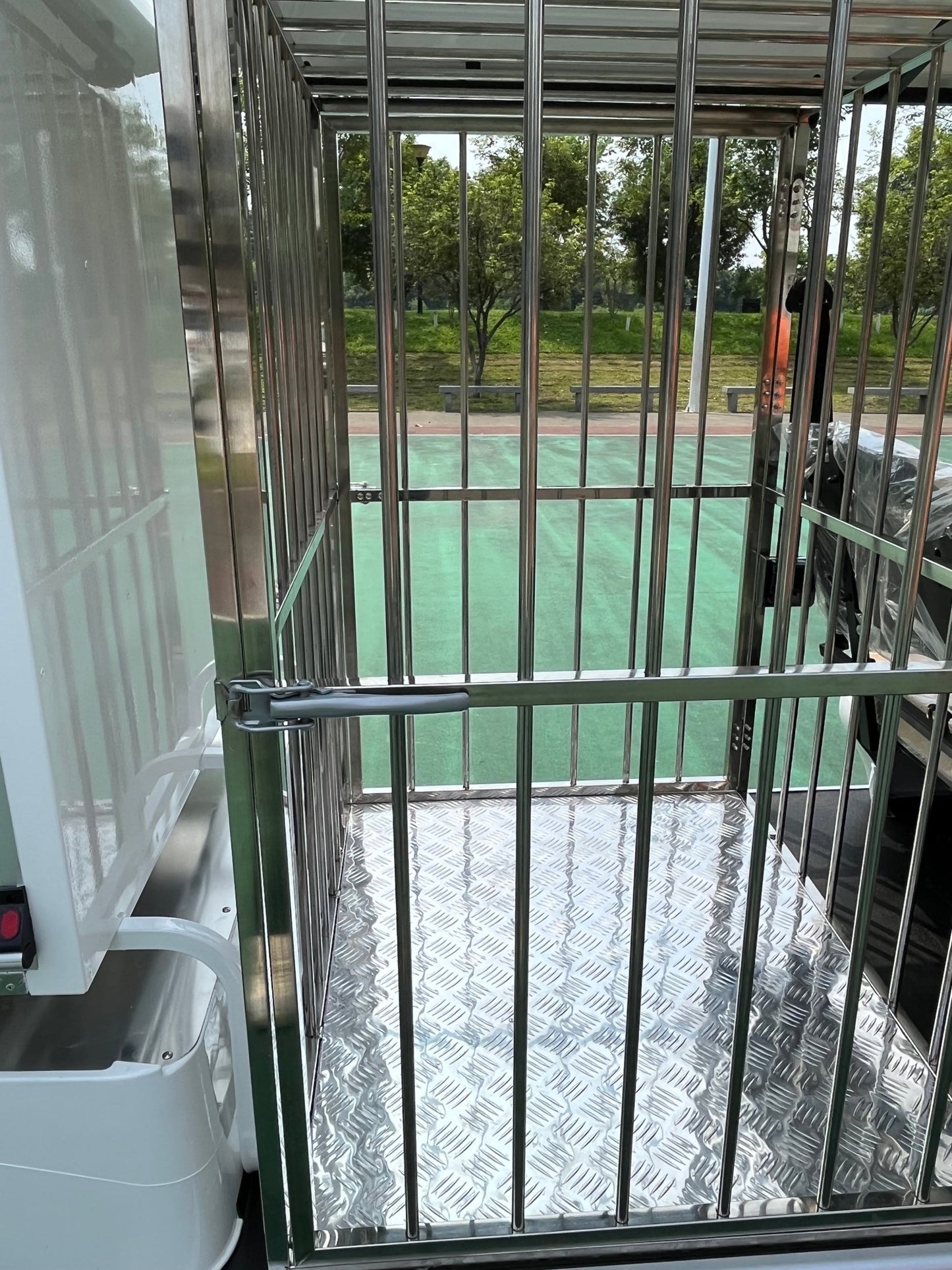

Cage Dimensions
Width: 1100mm
Length: 800mm
Height: 1400mm
Standard Inclusions
Standard Inclusions
- 100Ah Lithium battery (5-Year Warranty)
- Rear Cabinet
- Broom/Mop Holder on Rear of Cabinet
- Caged Area
- 4 Wheel Hydraulic Disc Brakes
- LED Roof Mounted Beacon
- Rear Balance Bar
- 3 Point Seat Belts
- Auto Park Brake
- Regenerative braking
- Curtis Controller
- On Board Charger
- Full light system including blinkers
- Mag Wheels
- Speedo/Voltmeter/Ammeter
- Tinted Split windscreen
- Reinforced Aluminium Frame
- 12V/USB Outlets
- Reverse Buzzer
- High/Low Speed Switch
- Plastic underbody
Accessories
Accessories
- Seat Covers - Cool Dry
- Front Tray Double Height
- Power Steering
- Diff Lock
- Tow Hitch
- Front Nudge Bar
- Wet Weather Curtains
- Side Rail Guards
- High back soft seats
- LED Roof Mounted Light Bar
- Solar Panel for Roof of Cart
