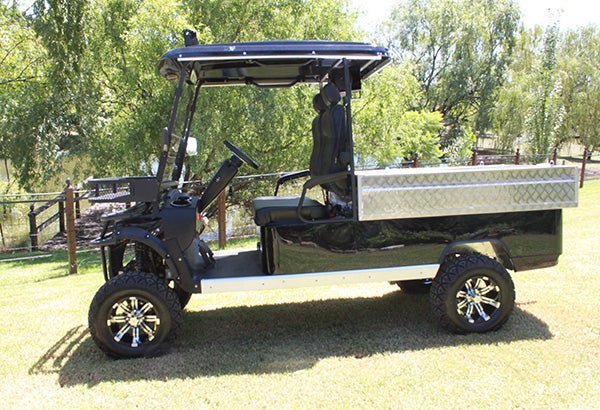

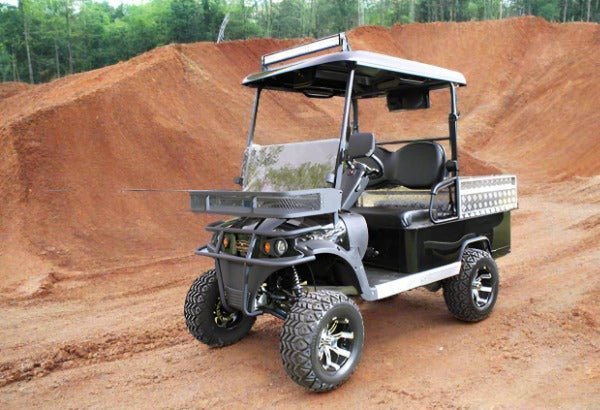

Razorback Utilty MWB & LWB Electric Cart
Razorback Utilty MWB & LWB Electric Cart
The Razorback Utility Task Vehicle (UTV) complete with 150Ah Lithium battery (5-Year Warranty) is engineered to serve a multitude of businesses efficiently. Some of the notable features that make it suitable for such diverse applications:
- Top of the Range Clearance: Ensures smooth operation over various terrains, making it ideal for locations like airports, wineries, and caravan parks.

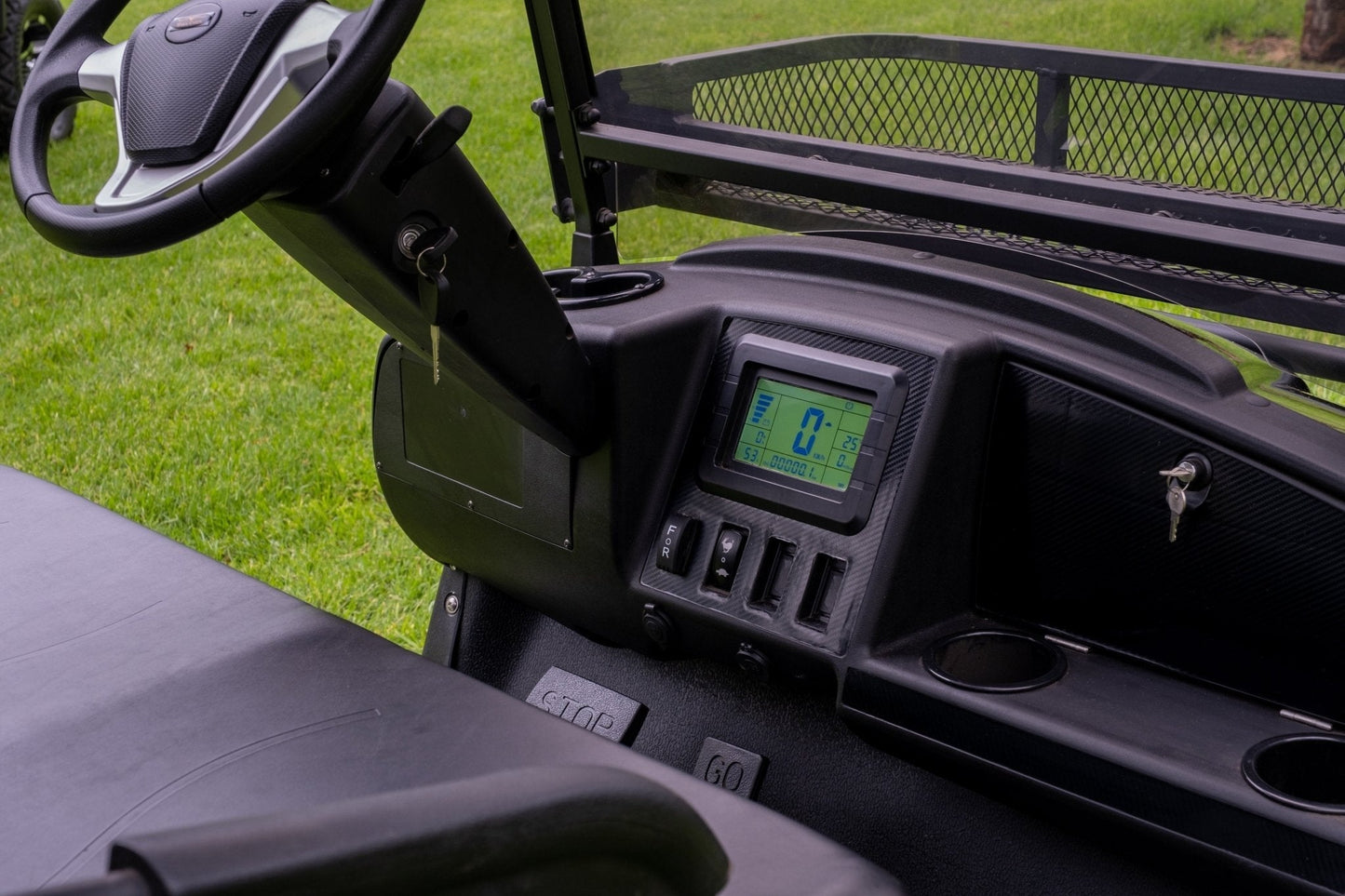

- Full Digital Instrumentation: Provides real-time data and diagnostics for effective vehicle management.
- Automatic Park Brake: Enhances safety by automatically securing the vehicle when stationary.
- 4 Wheel Hydraulic Disc Brakes: Offers superior stopping power, crucial for a utility vehicle in different work environments.

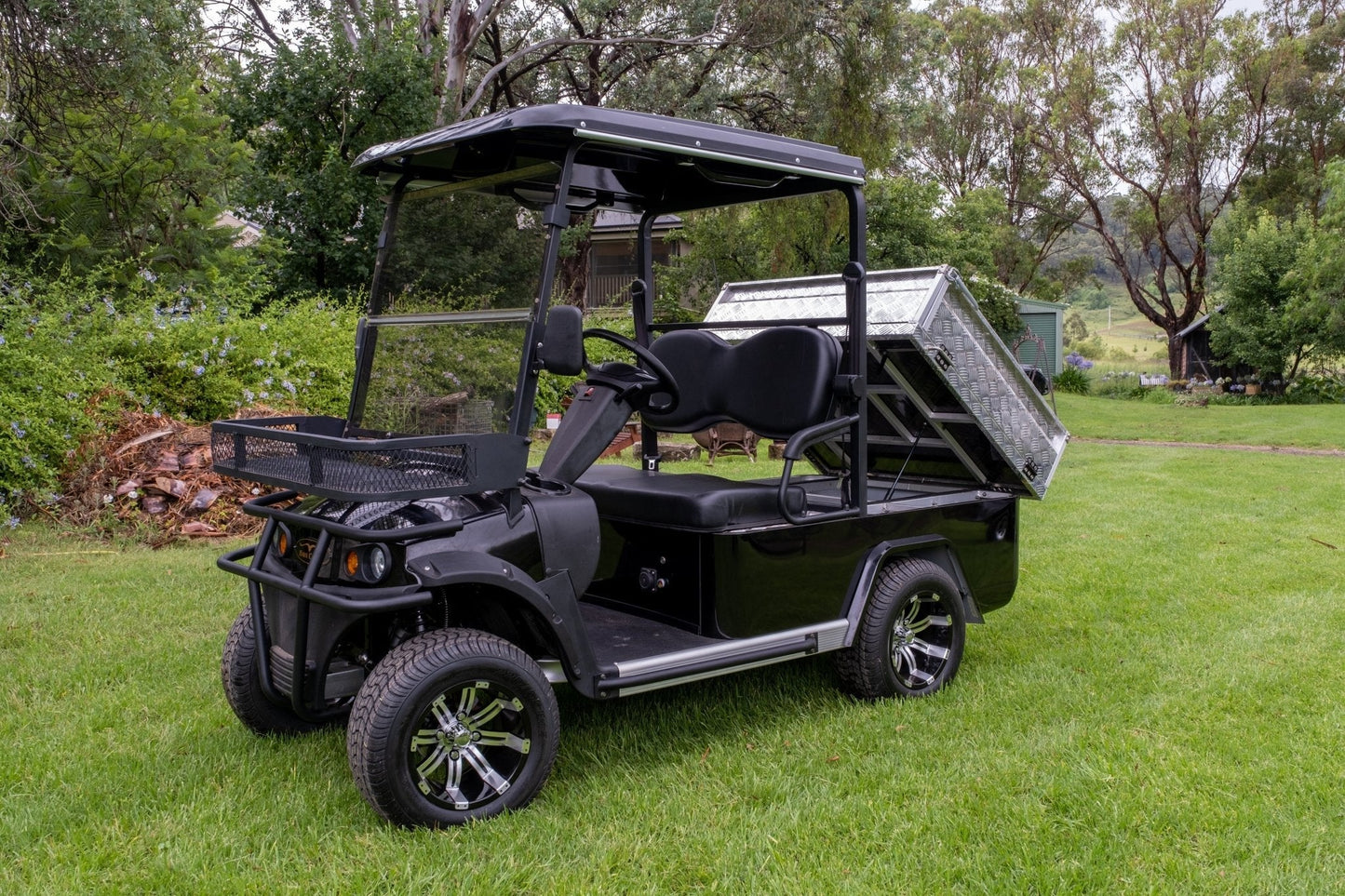

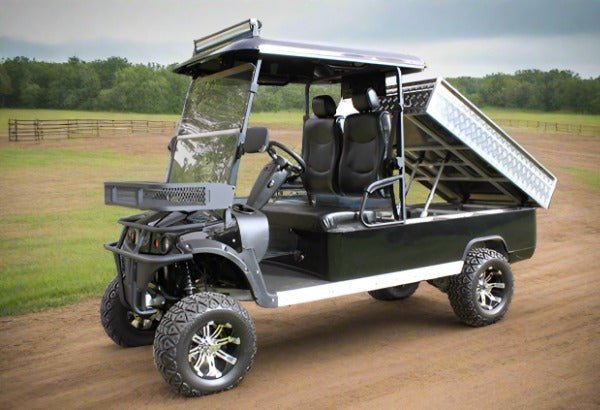

- Electric/Hydraulic Tipping Tray: Adds convenience for loading and unloading cargo, saving time and effort.
- Aluminium Chassis: Contributes to the vehicle’s durability and longevity, ensuring it can withstand the rigors of daily use.
- Rear Diff Lock: Significantly enhances the off-road capabilities of your cart. By ensuring equal drive to both rear wheels, it provides better traction and stability, especially when navigating slippery or uneven terrain.
With these features, the Razorback UTV stands out as a reliable and versatile electric cart, perfect for a wide range of business needs. Whether it’s for maintenance tasks at a golf course or transporting goods across a school campus, this UTV is designed to perform efficiently and safely.
Performance
Performance
Maximum Speed: 1-30km/h programable with fast/slow switch
Maximum Travel Distance: 80km
Slope Climbing Capacity: 1 in 3 grade (full load)
Turning Radius: SWB-3.7m LWB-4.5m
Power Supply
Power Supply
Battery: 48V 150AH Lithium-ion (5-Year Warranty)
Motor: 48V5KW AC - 48Nm
Controller: American Curtis Controller
Accelerator: Non-contact angle sensor accelerator
Charger: RD On-Board Charger 48V 17A - 8hr full charge time
Chassis & Suspension
Chassis & Suspension
Chassis: High Strength Aluminium Structural Main Girder
Front Suspension: Independent A-arm, coil over shocks
Rear Suspension: Semi independent suspension - spring hydraulic cushioning
Steering: Dual direction gear, rack steering system
Braking: 4 Wheel Hydraulic Disc brakes; Auto Park Brake
Dimensions & Weights
Dimensions & Weights
Overall Dimensions LxWxH
MWB - 2850*1320*2140mm
LWB - 3500*1320*2140mm
Wheelbase: MWB-1695mm LWB-2325mm
Front Wheel Track: 1265mm
Rear Wheel Track: 1275mm
Tyres: Wanda 23*10.5-12 4 Ply
Ground Clearance: 350mm
Rear Tray Dimensions LxWxH
MWB-1000*1120*300mm
LWB-1600*1120*300mm
Rear Tray Capacity:
MWB - 250kgs
LWB - 350kgs
Front Tray Dimensions LxWxH 330*1130*90mm
Weight: MWB-515kg LWB-653kg (including 65kg battery)
Towing Capacity: ≤2000kgs
Standard Inclusions
Standard Inclusions
- 150Ah Lithium battery (5-Year Warranty)
- 4 Wheel Hydraulic Disc Brakes
- Power Steering
- Diff Lock
- Tow Hitch

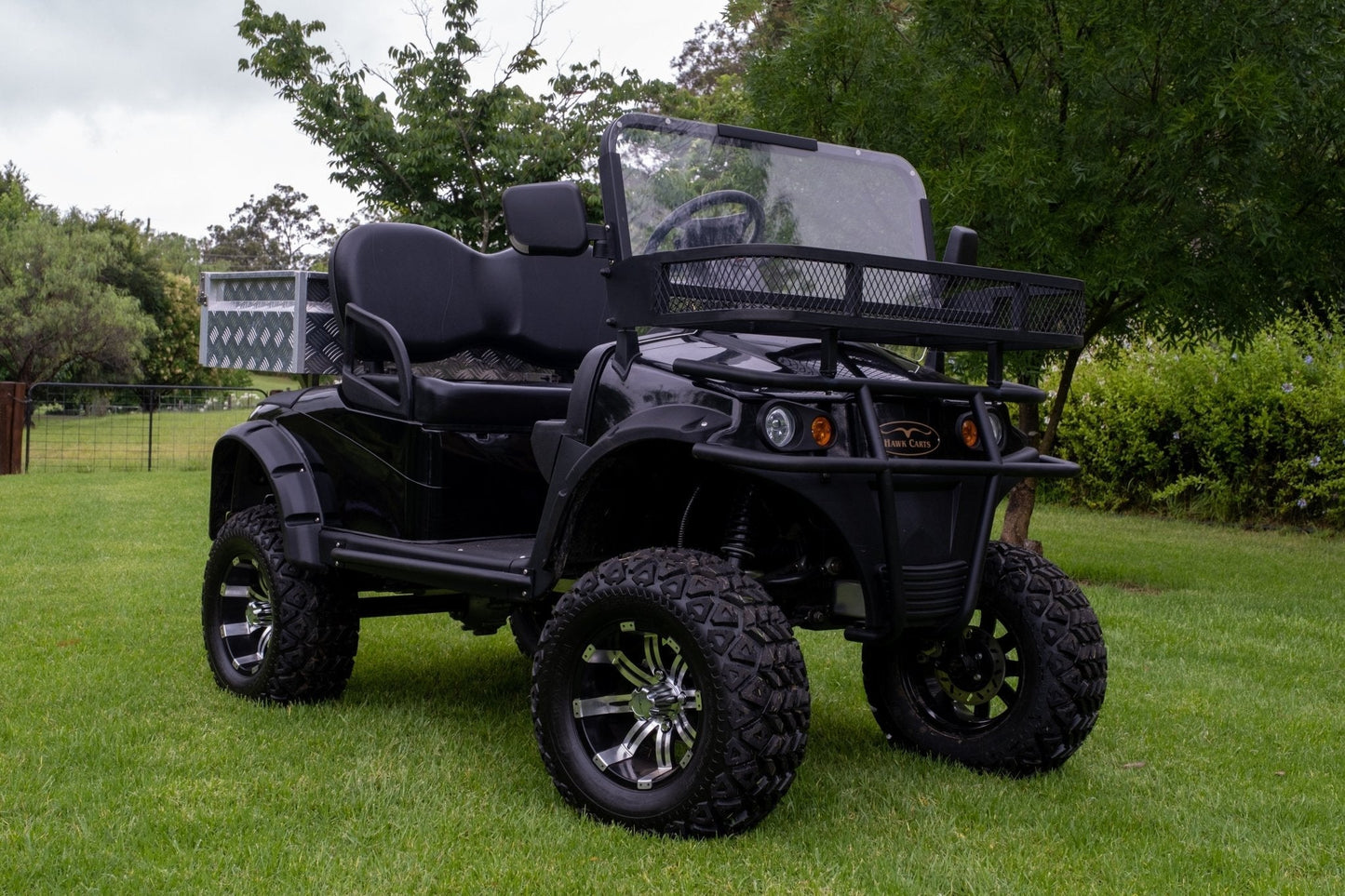

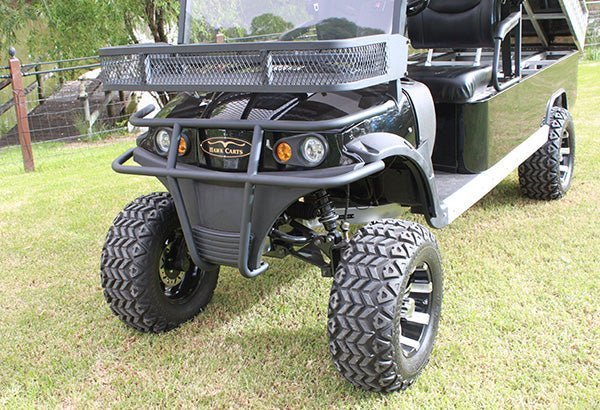

- Front Nudge Bar
- Front Tray
- Side Rail Guards
- Electric/Hydraulic Rear Tray Lift
- Rear Balance Bar
- 3 Point Seat Belts
- Auto Park Brake
- Regenerative braking
- Curtis Controller
- On Board Charger
- Full light system including blinkers
- Mag Wheels
- Speedo/Voltmeter/Ammeter
- Tinted Split windscreen
- Reinforced Aluminium Frame
- 12V/USB Outlets

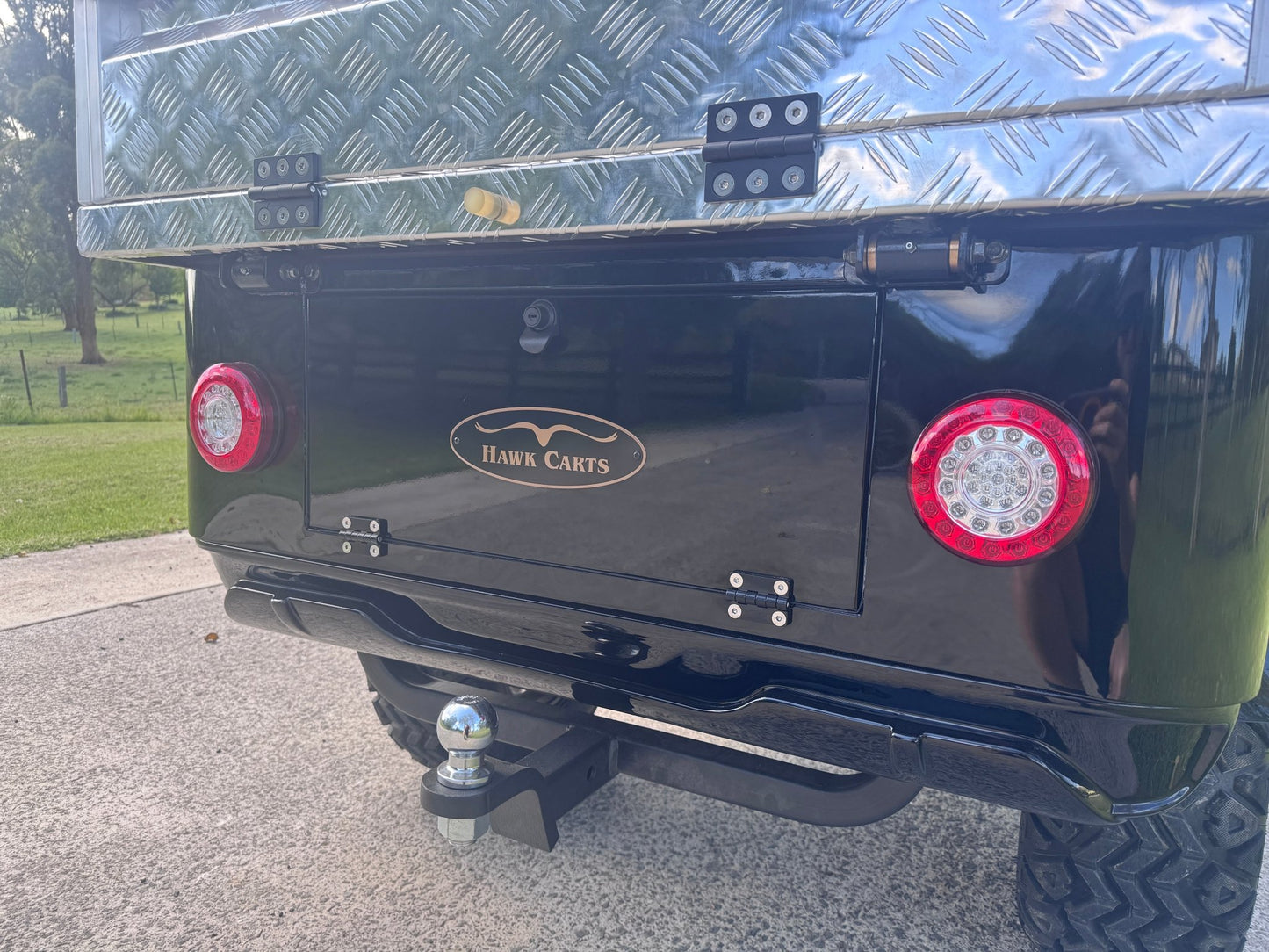

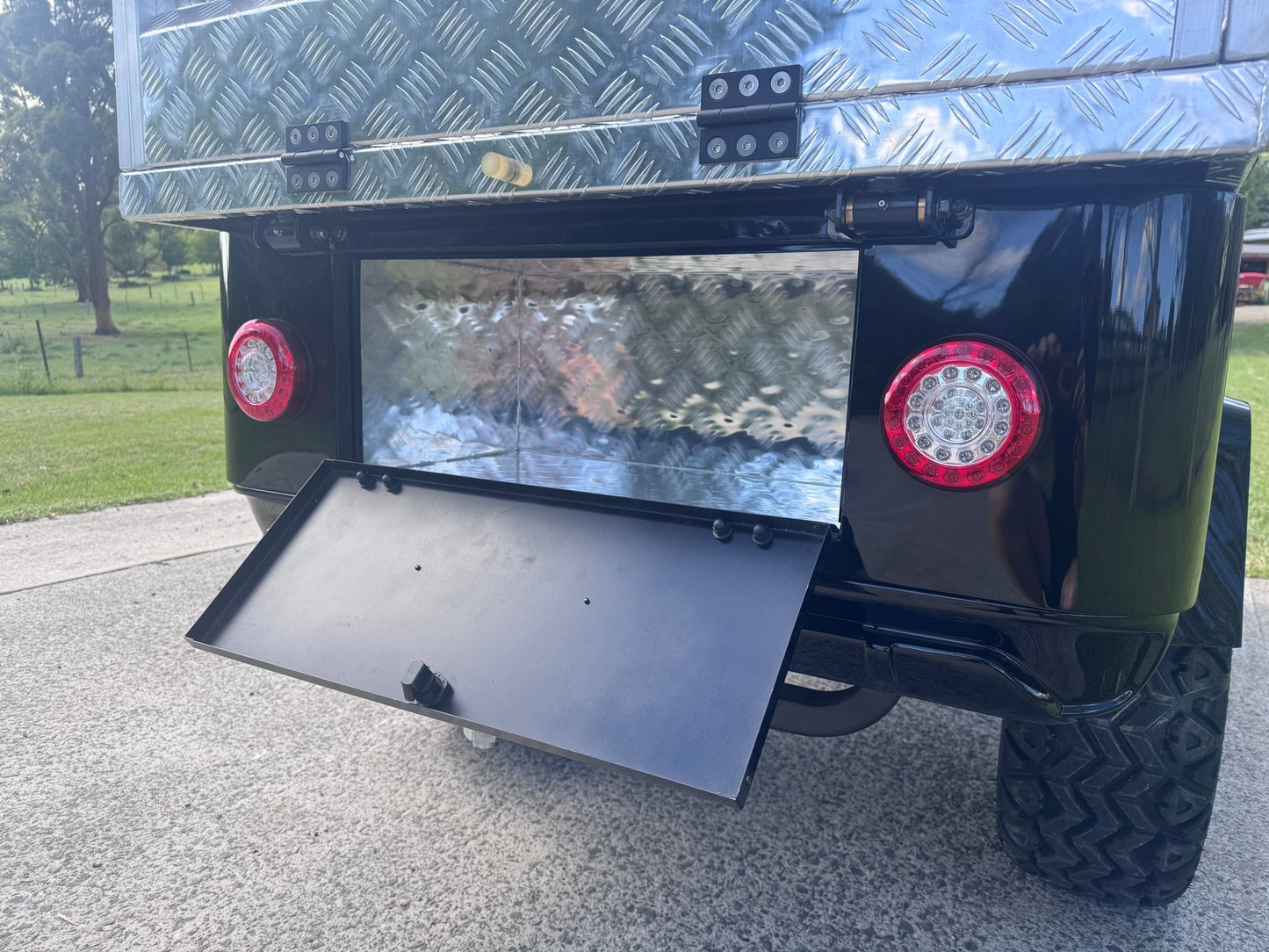

- Rear Under Body Storage
- Reverse Buzzer
- High/Low Speed Switch
- Plastic underbody
Accessories
Accessories
- Petrol Generator - Range Extender
- Momo Sports Steering Wheel
- Wet Weather Curtains
- Tie Down Points on Rear Tray
- Rhox Stereo sound system
- LED indicator side mirrors
- High back soft seats
- Hanging rack for tools
- LED Roof Mounted Light Bar
- LED Amber Roof Beacon
- Cruise Control
- Rear View Camera
- Winch - Front Mounted
- 6000W Inverter
- Seat Covers - Cool Dry
- 72V System Upgrade
