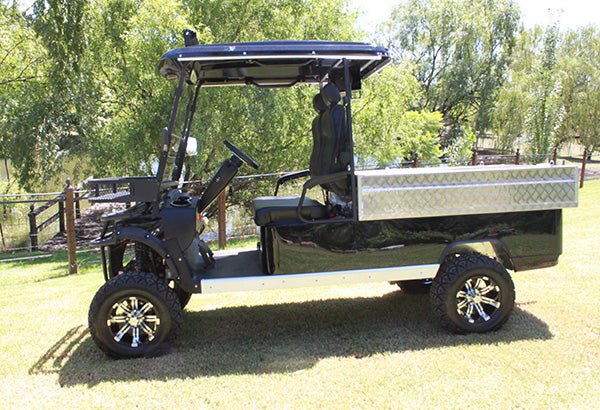

Razorback MINE SPEC ROPS Utility Electric Vehicle
Razorback MINE SPEC ROPS Utility Electric Vehicle
The Razorback Mine Spec ROPS Utility, featuring a 150Ah Lithium battery (5-Year Warranty), is designed to meet the demanding needs of the mining industry. Key features include:
- Full Mine Spec: Equiped with ROPS, amber beacon, E-Stop, driver seat belt lockout and a fire extinguisher, ensuring top-tier safety on mine sites.
- Top of the Range Clearance: Ensures smooth operation over rugged mining terrains, making it ideal for challenging mine site conditions.
- Full Digital Instrumentation: Provides real-time data and diagnostics for effective vehicle management.
- Automatic Park Brake: Enhances safety by automatically securing the vehicle when stationary.
- 4 Wheel Hydraulic Disc Brakes: Provides superior stopping power, essential for safe operation in demanding mine site environments.
- Electric/Hydraulic Tipping Tray: Adds convenience for loading and unloading cargo, saving time and effort.
- Aluminium Chassis: Contributes to the vehicle’s durability and longevity, ensuring it can withstand the rigors of daily use.
- Rear Diff Lock: Significantly enhances the off-road capabilities of your cart. By ensuring equal drive to both rear wheels, it provides better traction and stability, especially when navigating slippery or uneven terrain.
With these features, the Razorback Mine Spec UTV LWB is a reliable and versatile electric vehicle, ideal for various mining operations. Whether it’s for transporting equipment across a mine site or performing maintenance tasks, this UTV is engineered to operate efficiently and safely in demanding environments.
Performance
Performance
Maximum Speed: 1-30km/h programable with fast/slow switch
Maximum Travel Distance: 80km
Slope Climbing Capacity: 1 in 3 grade (full load 350kg)
Turning Radius: 4.5m
Power Supply
Power Supply
Battery: 48V 150AH Lithium-ion (5-Year Warranty)
Motor: 48V5KW AC - 48Nm
Controller: American Curtis Controller
Accelerator: Non-contact angle sensor accelerator
Charger: RD On-Board Charger 48V 17A - 8hr full charge time
Chassis & Suspension
Chassis & Suspension
Chassis: High Strength Aluminium Structural Main Girder
Front Suspension: Independent A-arm, coil over shocks
Rear Suspension: Semi independent suspension - spring hydraulic cushioning
Steering: Dual direction gear, rack steering system
Braking: 4 Wheel Hydraulic Disc brakes; Auto Park Brake
Dimensions & Weights
Dimensions & Weights
Overall Dimensions LxWxH
3500*1320*2140mm
Wheelbase: LWB-2325mm
Front Wheel Track: 1265mm
Rear Wheel Track: 1275mm
Tyres: Wanda 23*10.5-12 4 Ply
Ground Clearance: 350mm
Rear Tray Dimensions LxWxH
1600*1120*300mm
Rear Tray Capacity: 350kgs
Front Tray Dimensions LxWxH 330*1130*90mm
Weight: 700kg (including 65kg battery)
Towing Capacity: ≤2000kgs
Standard Inclusions
Standard Inclusions
- 150Ah Lithium battery (5-Year Warranty)
- ROPS (Roll Over Protection) Frame
- LED Amber Roof Beacon
- Drivers Seat Belt Lockout
- Fire Extinguisher
- First Aid Kit
- 4 Wheel Hydraulic Disc Brakes
- Power Steering
- Diff Lock
- Tow Hitch
- Front Nudge Bar
- Front Tray
- Side Rail Guards
- Electric/Hydraulic Rear Tray Lift
- Rear Balance Bar
- 3 Point Seat Belts
- Auto Park Brake
- Regenerative braking
- Curtis Controller
- On Board Charger
- Full light system including blinkers
- Mag Wheels
- Speedo/Voltmeter/Ammeter
- Tinted Split windscreen
- Reinforced Aluminium Frame
- 12V/USB Outlets
- Rear Under Body Storage
- Reverse Buzzer
- High/Low Speed Switch
- Plastic underbody
Accessories
Accessories
- Momo Sports Steering Wheel
- Wet Weather Curtains
- Tie Down Points on Rear Tray
- Rhox Stereo sound system
- High back soft seats
- Hanging rack for tools
- Cruise Control
- Rear View Camera
- Winch - Front Mounted
- 5000W Inverter
- 72V System Upgrade
