Hawk Carts

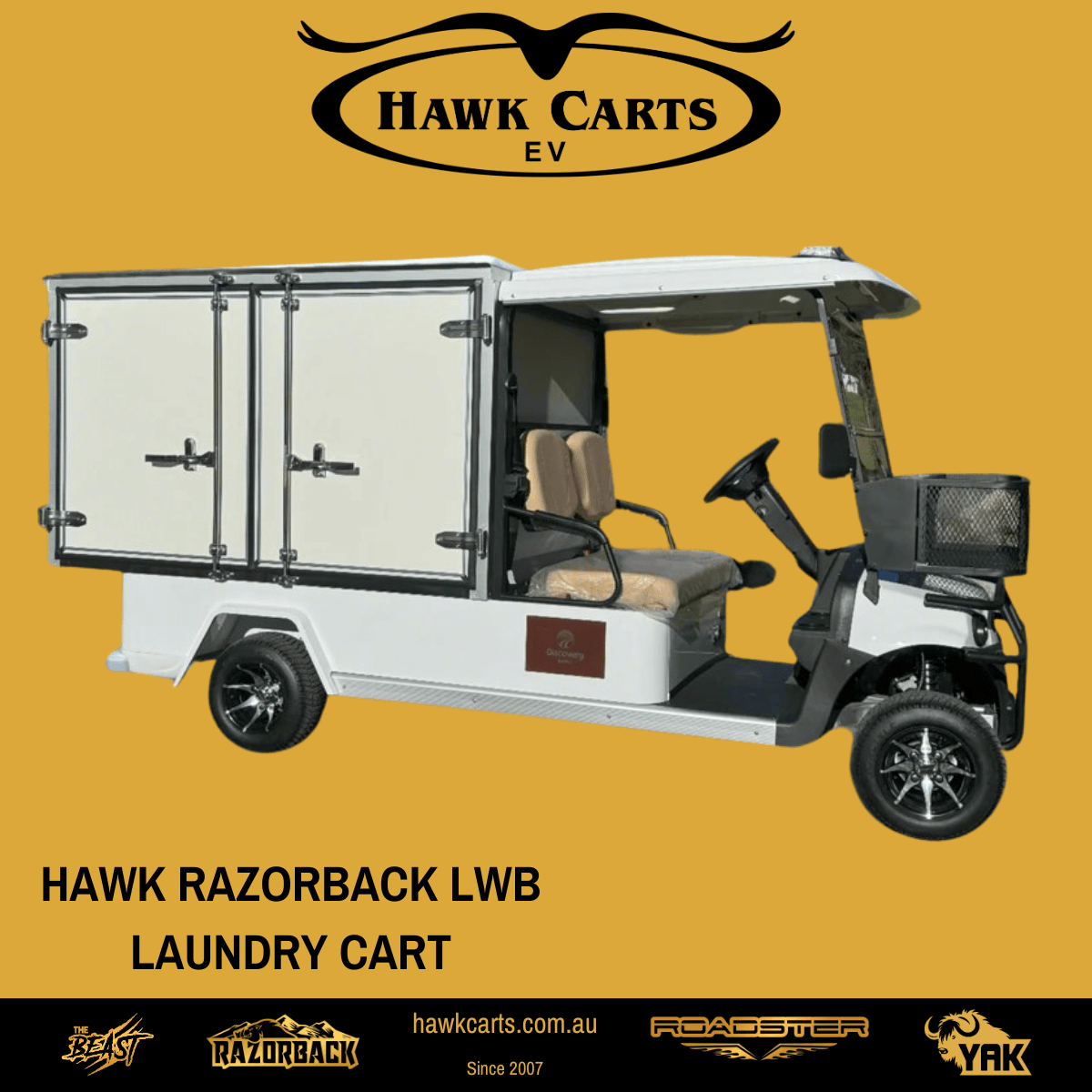

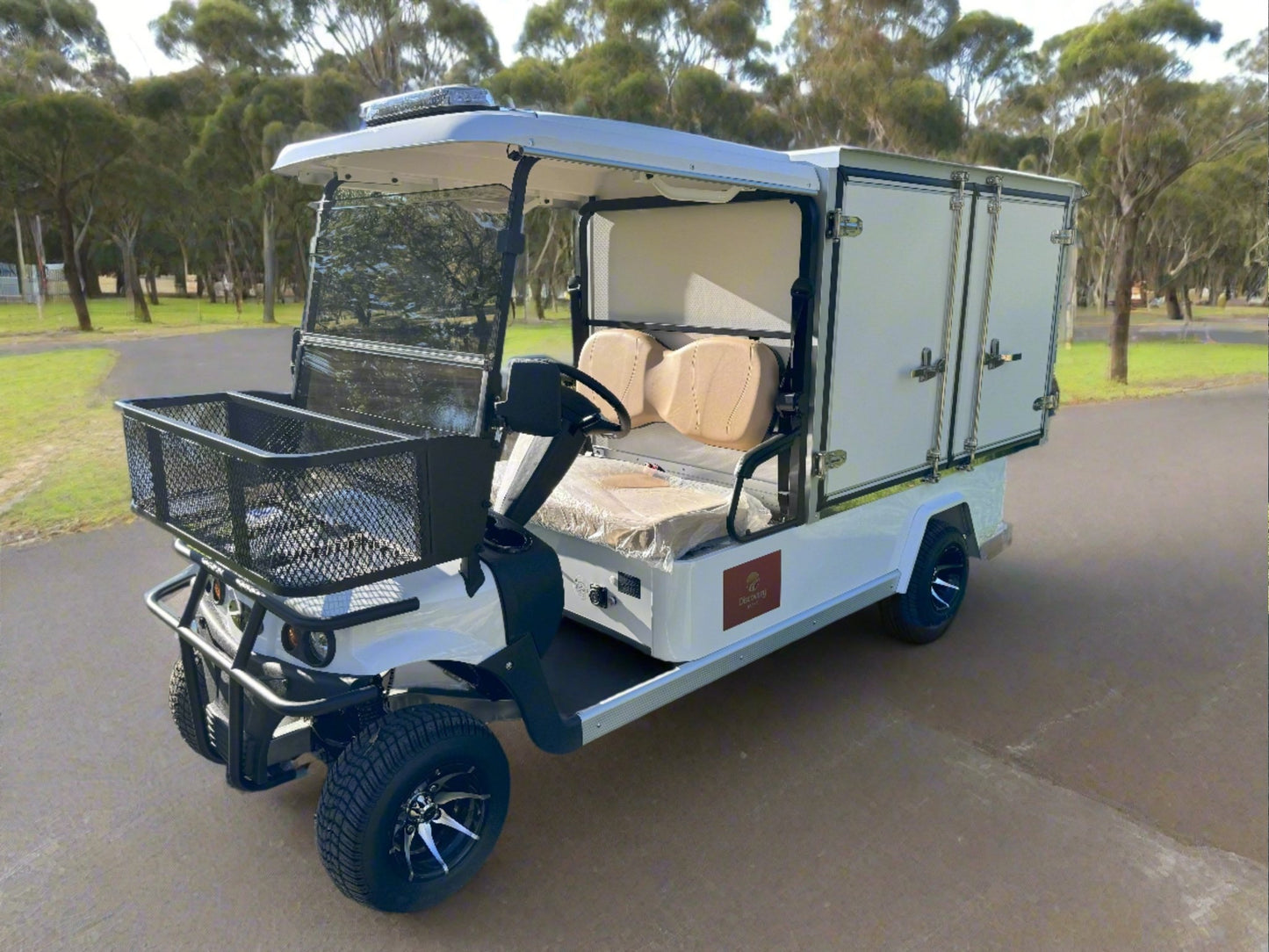

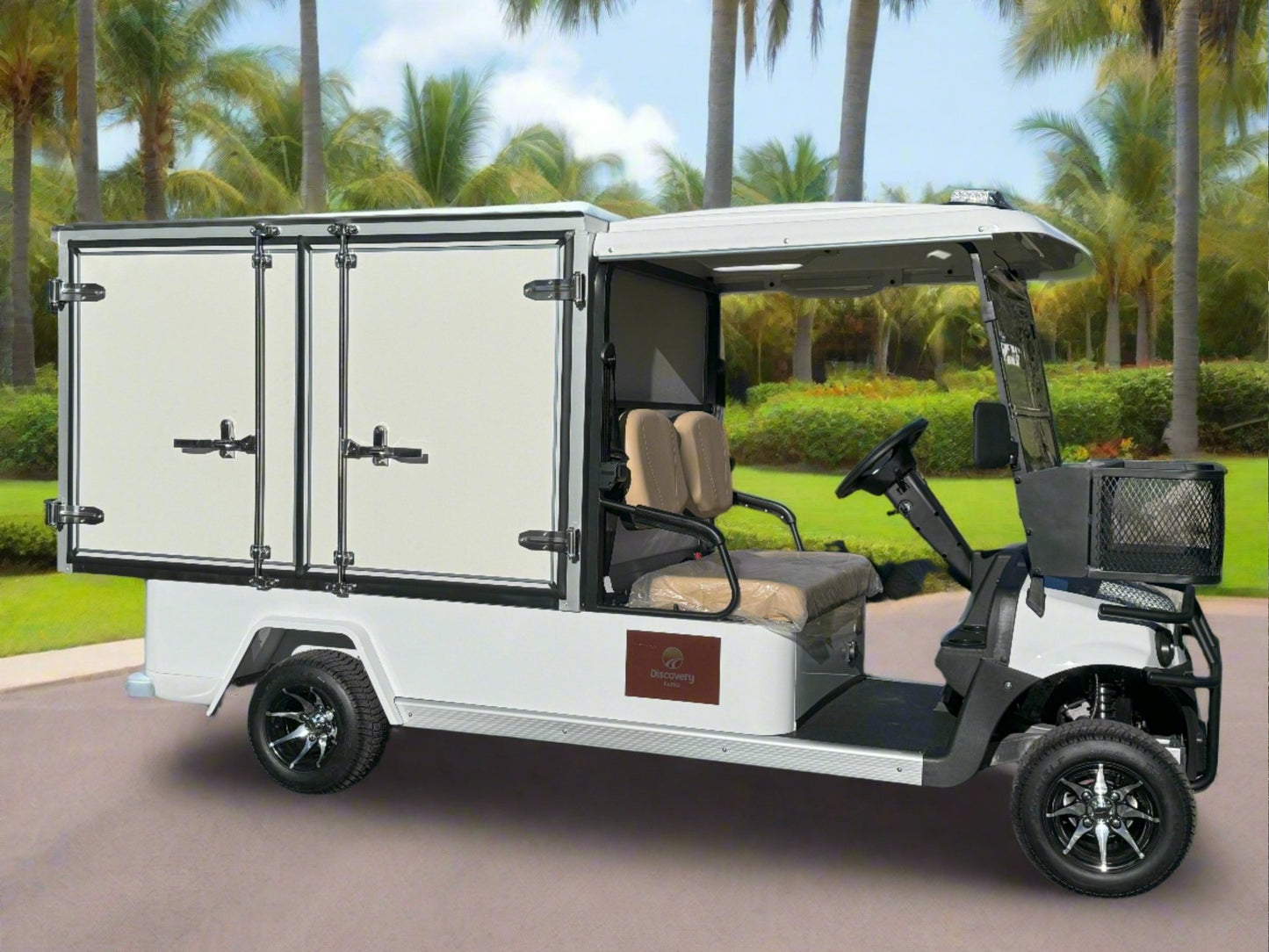

Razorback LWB Linen Laundry Cart

Razorback LWB Linen Laundry Cart

Price excludes GST

The Razorback Linen/Laundry Cart is designed to streamline operations at resorts by making deliveries more efficient for staff. Here are some of the features that contribute to its ease of use and functionality:

  • Performance: Engineered for reliable and smooth performance in resort environments.
  • Power Supply: Equipped with a robust electric power supply for extended use.
  • Suspension: Advanced suspension system to handle various terrains within the resort.
  • Chassis: Durable chassis construction to withstand the demands of frequent use.
  • Accessories: A range of accessories can be added to customize the cart for specific needs.
  • Dimensions: Sized appropriately for easy maneuverability around the resort.

These features ensure that the Razorback Linen/Laundry Cart can handle the daily demands of resort operations, helping staff to transport goods and equipment efficiently and comfortably.

Performance

Maximum Speed: 5-30kmh (adjustable)

Maximum Travel Distance: 80km

Slope Climbing Capacity: 30%

Turning Radius: 4.5m

Weight: 545kg

Power Supply

Battery: 48V 100Ah Lithium (5-Year Warranty)

Motor: 48V5KW

Controller: Curtis DC48V/400A

Accelerator: Adjustable Inductive Accelerator

Charger: RD On-Board Charger 48V 17A

Suspension

Front: Independent A-arm, coil over shocks

Rear: Semi-independent - spring hydraulic cushioning

Steering: Dual direction gear, rack steering system

Braking: 4 wheel hydraulic disc brakes w/ auto electro-mechanical park brake

Chassis

Chassis: High Strength Aluminium Structural Main Girder

Wheel Base: 2325mm

Tyres: 205/50-10 4 Ply

Ground Clearance: 150mm

Dimensions

Overall Dimensions

Width: 1275mm

Length: 3800mm

Height: 1900mm

Cabinet Dimensions

Width: 1150mm

Length: 2000mm

Height: 1210mm

Standard Inclusions

- 5Kw AC Motor
- 100Ah Lithium battery (5-Year Warranty)

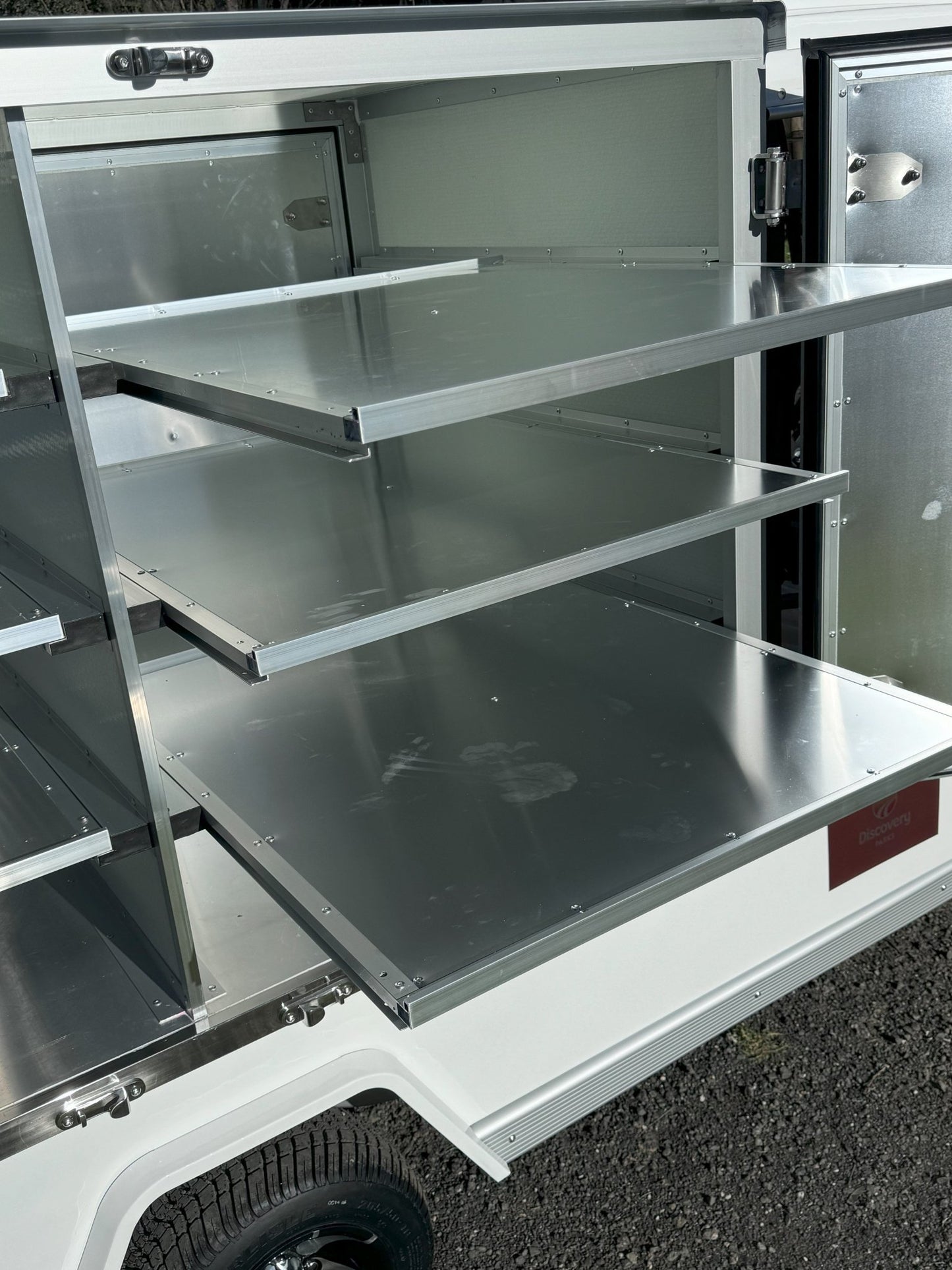

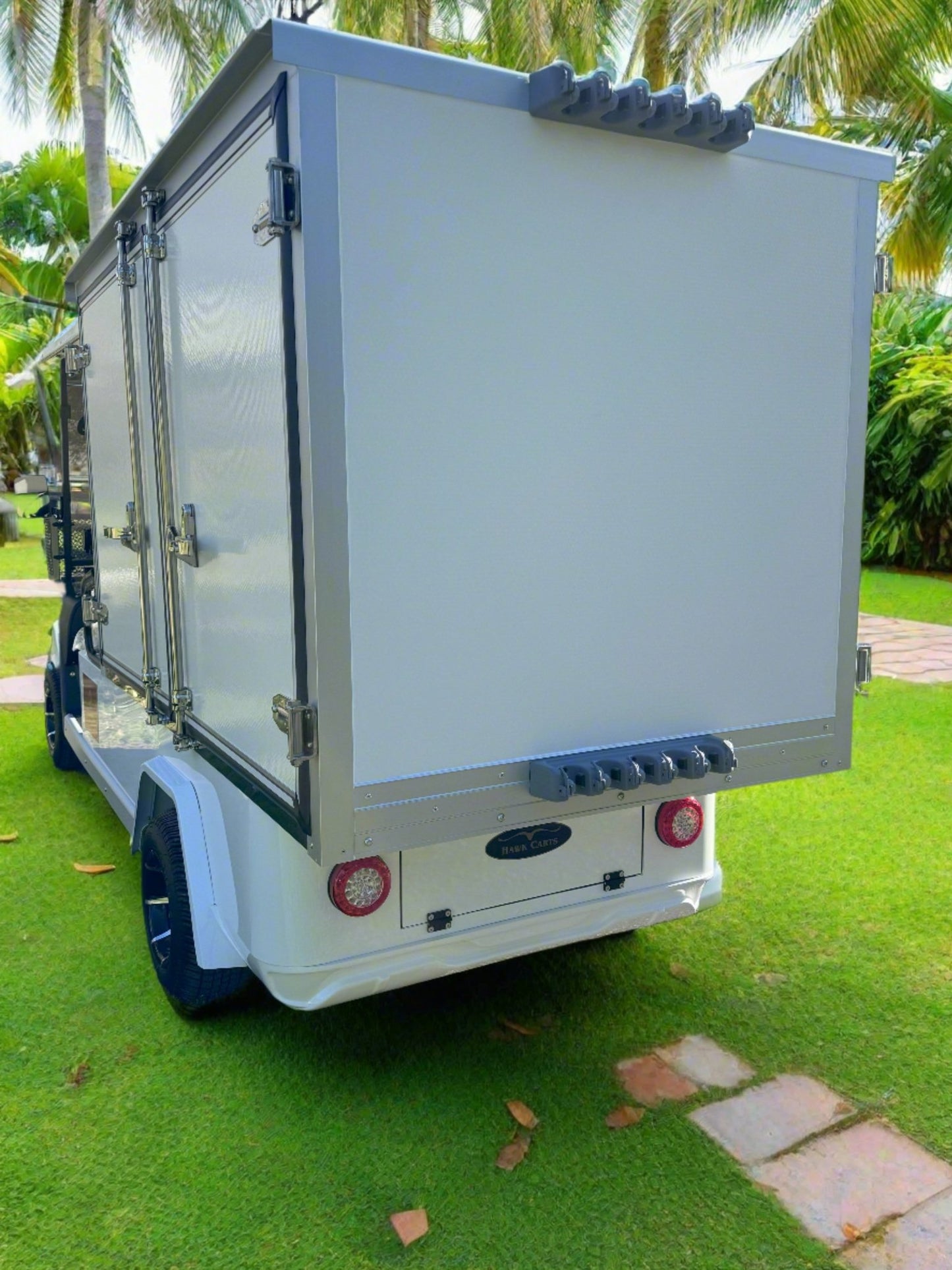

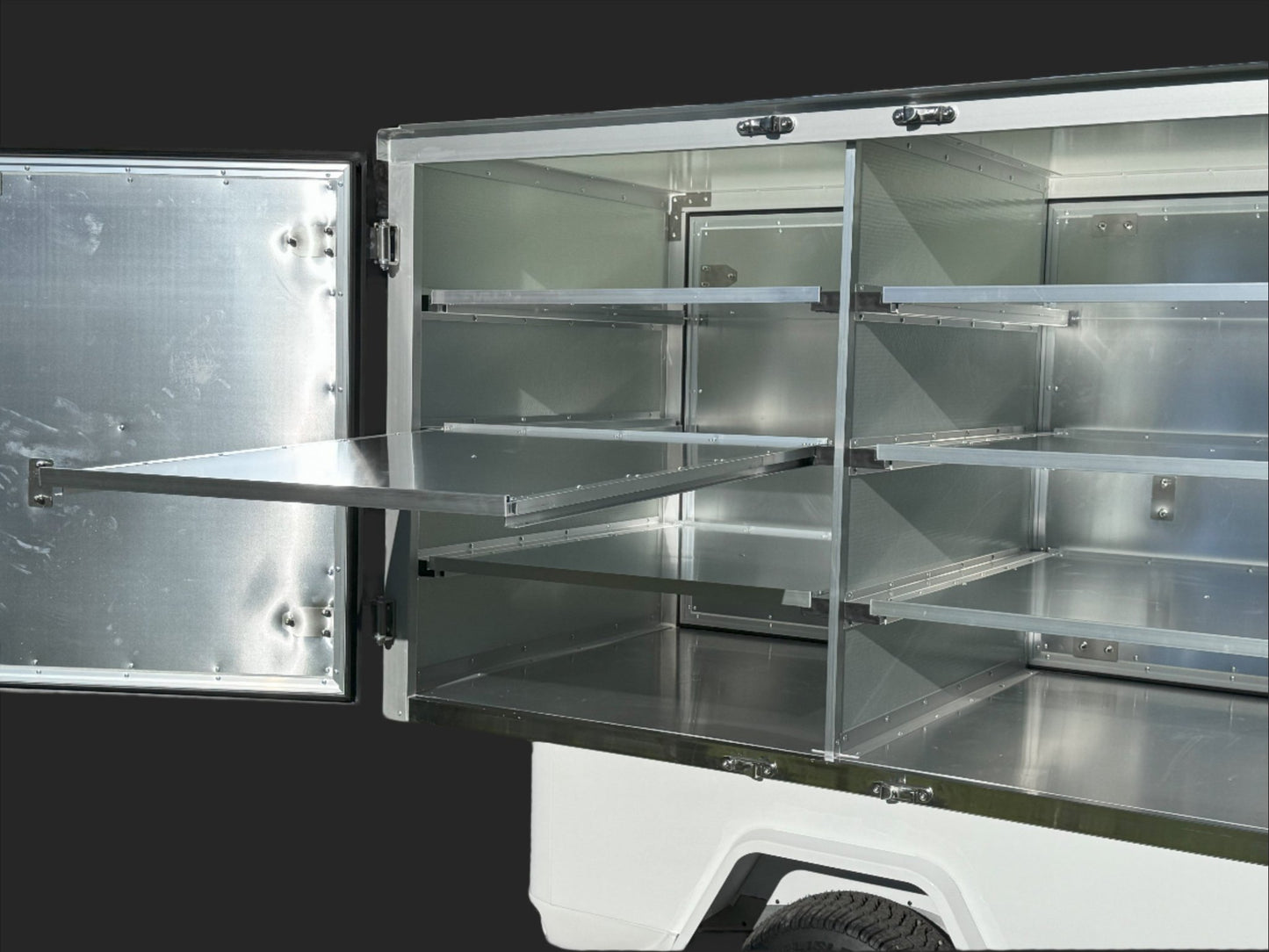

- Rear Cabinet w/ Barn Doors & 6 Sliding Shelves
- Broom/Mop Holder on Rear of Cabinet
- 4 Wheel Hydraulic Disc Brakes
- Front Tray Double Height
- LED Roof Mounted Beacon
- Rear Balance Bar
- 3 Point Seat Belts
- Auto Park Brake
- Regenerative braking
- Curtis Controller
- On Board Charger
- Full light system including blinkers
- Mag Wheels

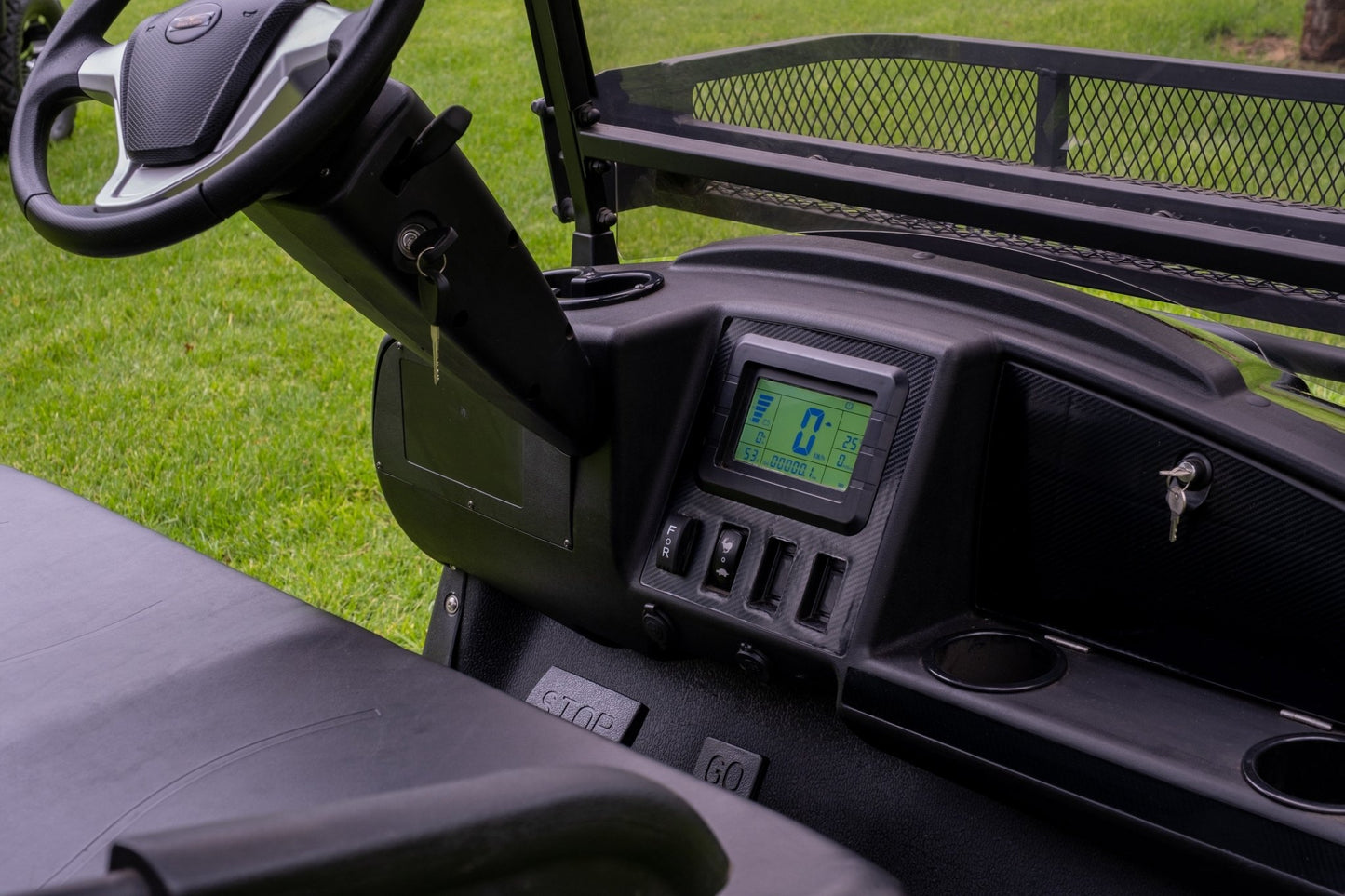

- Speedo/Voltmeter/Ammeter
- Tinted Split windscreen
- Reinforced Aluminium Frame
- 12V/USB Outlets
- Reverse Buzzer
- High/Low Speed Switch
- Plastic underbody

Accessories

- Rear View Camera
- Seat Covers - Cool Dry
- Power Steering
- Diff Lock
- Tow Hitch
- Front Nudge Bar
- Wet Weather Curtains
- Side Rail Guards
- High back soft seats
- LED Roof Mounted Light Bar
- Solar Panel for Roof of Cart
