Hawk Carts

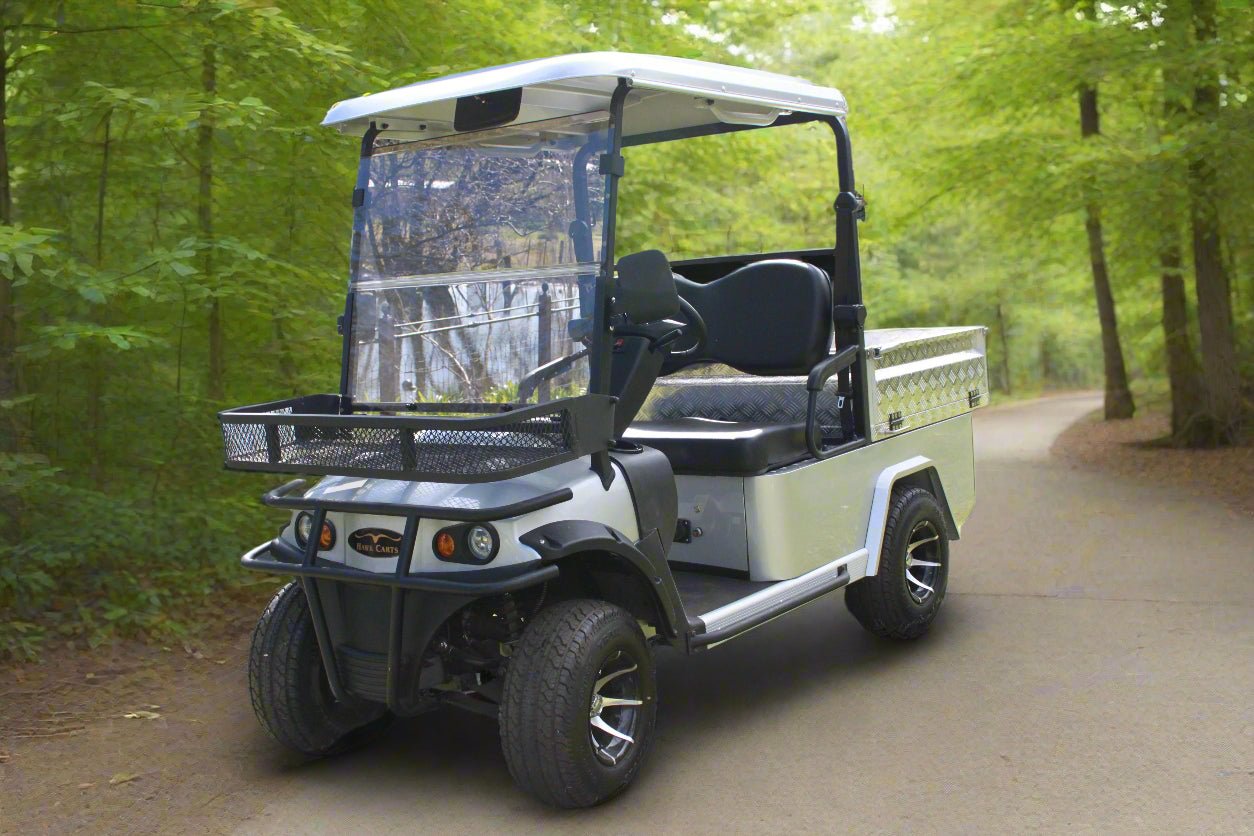

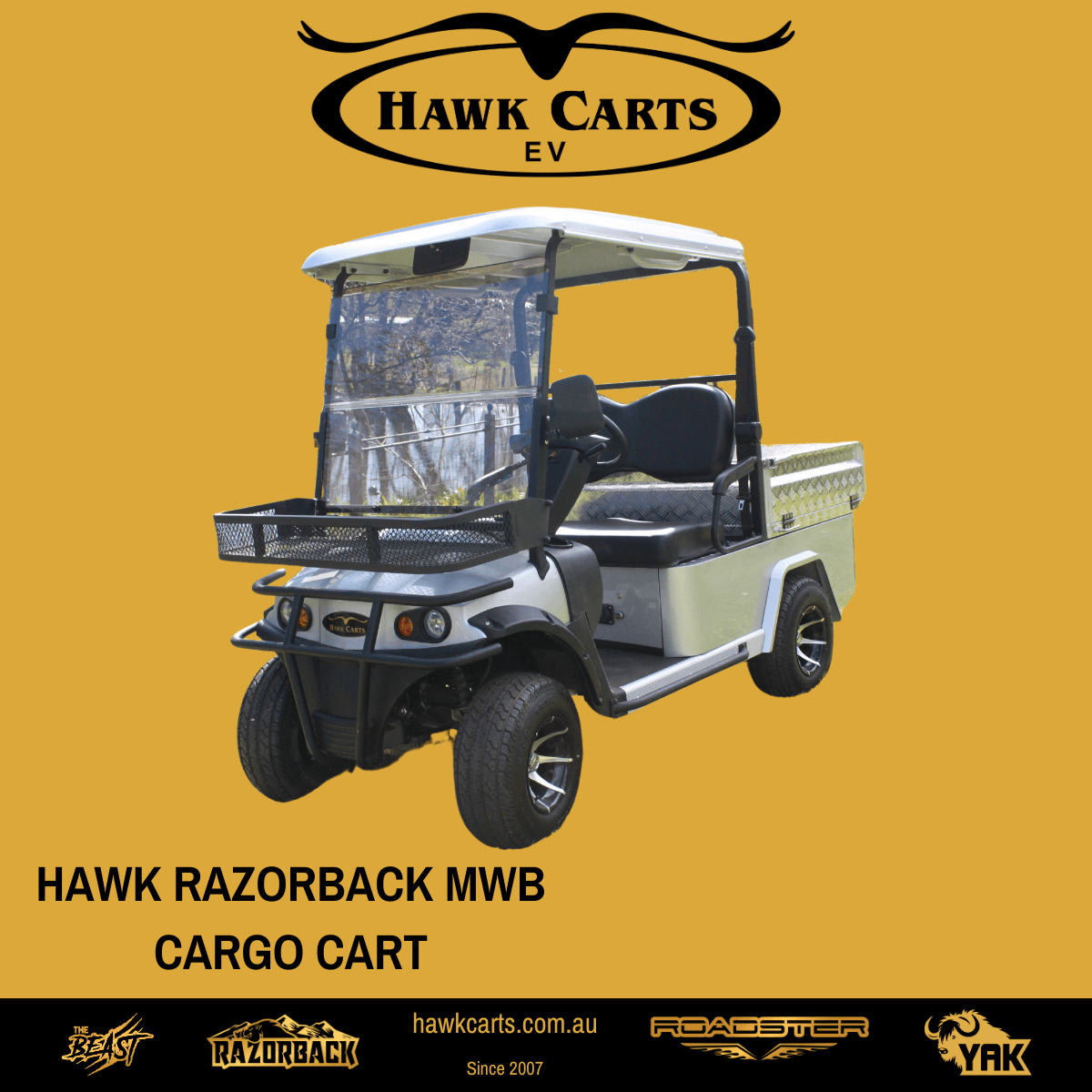

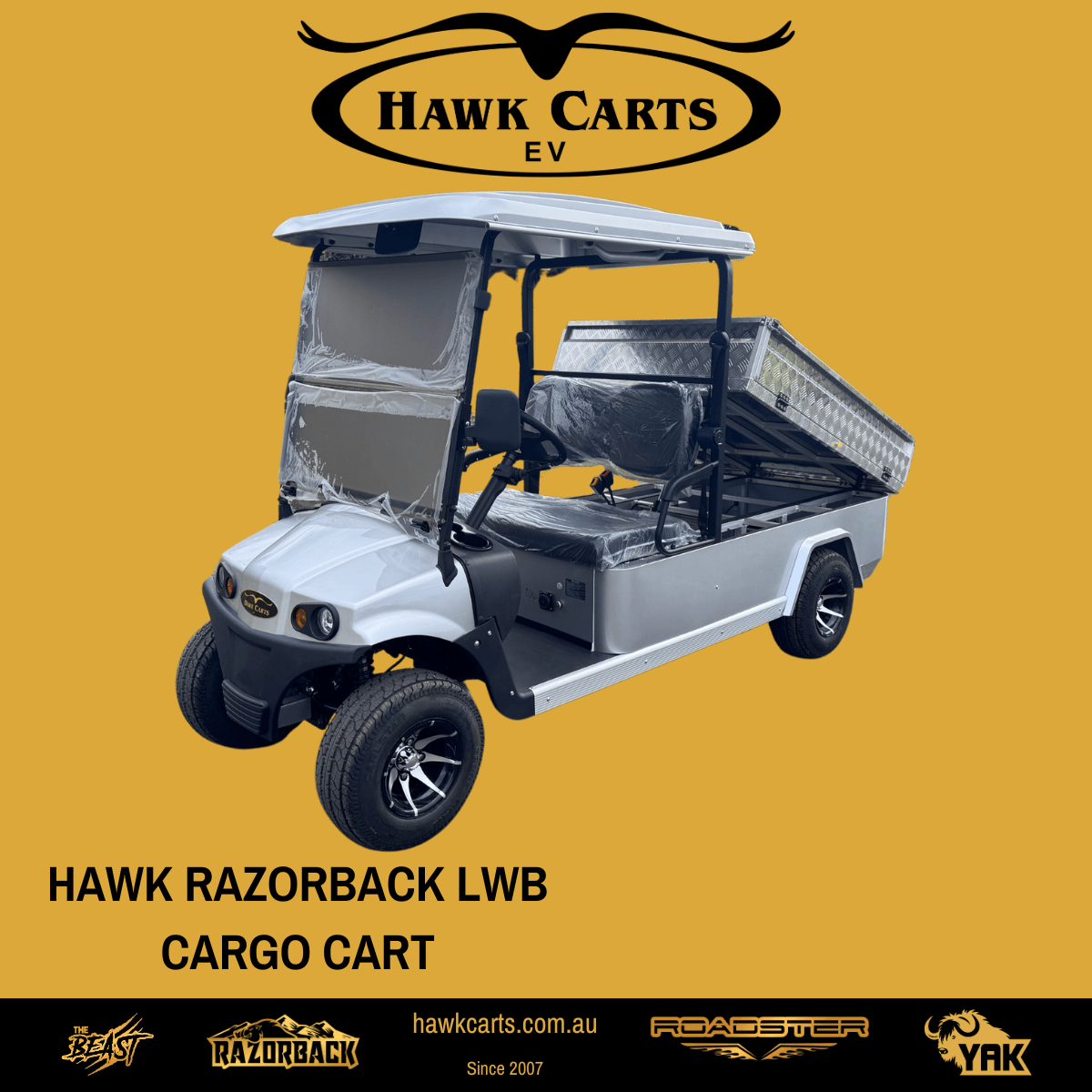

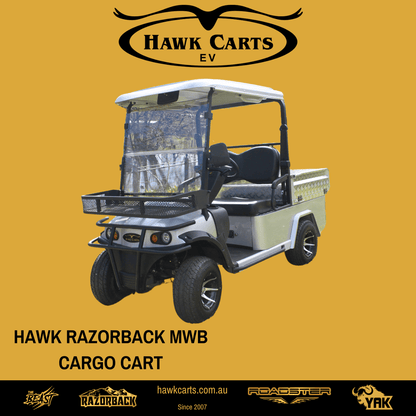

Razorback Cargo MWB & LWB Electric UTV
Razorback Cargo MWB & LWB Electric UTV
Price excludes GST
Couldn't load pickup availability
The Razorback Cargo Cart is indeed designed to meet the needs of larger operations that require a spacious utility tray. Here are some of its standout features:
- Utility Tray: Ideal for transporting loads across various terrains.
- Versatility: Suitable for a wide range of environments, from educational institutions to golf courses.
- Electric Tray Lift: Available for ease of loading and unloading materials.
- Robust Construction: Built to withstand the demands of different workplaces.
- Digital Instrumentation: Offers precise control and monitoring of the cart’s functions.
- Automatic Park Brake: Enhances safety by preventing unintended movement when parked.
- Hydraulic Disc Brakes: Provides reliable stopping power under various load conditions.
- Aluminium Chassis: Enhances durability and contributes to the vehicle’s longevity.
These features make the Hawk Razorback Cargo Cart a practical choice for those who need a reliable and efficient utility vehicle for their larger-scale operations
Performance
Performance
Maximum Speed: 1-30km/h programable with fast/slow switch
Maximum Travel Distance: 80km
Slope Climbing Capacity: 1 in 3 grade (full load 250kg)
Turning Radius: SWB-3.7m LWB-4.5m
Power Supply
Power Supply
Battery: 48V 100AH Lithium-ion
Motor: 48V5KW AC - 48Nm
Controller: American Curtis Controller
Accelerator: Non-contact angle sensor accelerator
Charger: RD On-Board Charger 48V 17A - 8hr full charge time
Chassis & Suspension
Chassis & Suspension
Chassis: High Strength Aluminium Structural Main Girder
Front Suspension: Independent A-arm, coil over shocks
Rear Suspension: Semi independent suspension - spring hydraulic cushioning
Steering: Dual direction gear, rack steering system
Braking: 4 Wheel Hydraulic Disc brakes; Auto Park Brake
Dimensions & Weights
Dimensions & Weights
Overall Dimensions LxWxH
MWB - 2850*1320*2000mm
LWB - 3500*1320*2000mm
Wheelbase: MWB-1695mm LWB-2325mm
Front Wheel Track: 1265mm
Rear Wheel Track: 1275mm
Tyres: 205/50-10 4 Ply
Ground Clearance: 150mm
Rear Tray Dimensions LxWxH
MWB-1000*1120*300mm
LWB-1600*1120*300mm
Rear Tray Capacity:
MWB - 250kgs
LWB - 350kgs
Front Tray Dimensions LxWxH 330*1130*90mm
Weight: MWB-515kg LWB-653kg (including 65kg battery)
Towing Capacity: ≤2000kgs
Standard Inclusions
Standard Inclusions
- 100Ah Lithium Battery
- 4 Wheel Hydraulic Disc Brakes
- Power Steering
- Electric/Hydraulic Rear Tray Lift
- Rear Balance Bar
- 3 Point Seat Belts
- Auto Park Brake
- Regenerative braking
- Curtis Controller
- On Board Charger
- Full light system including blinkers
- Mag Wheels

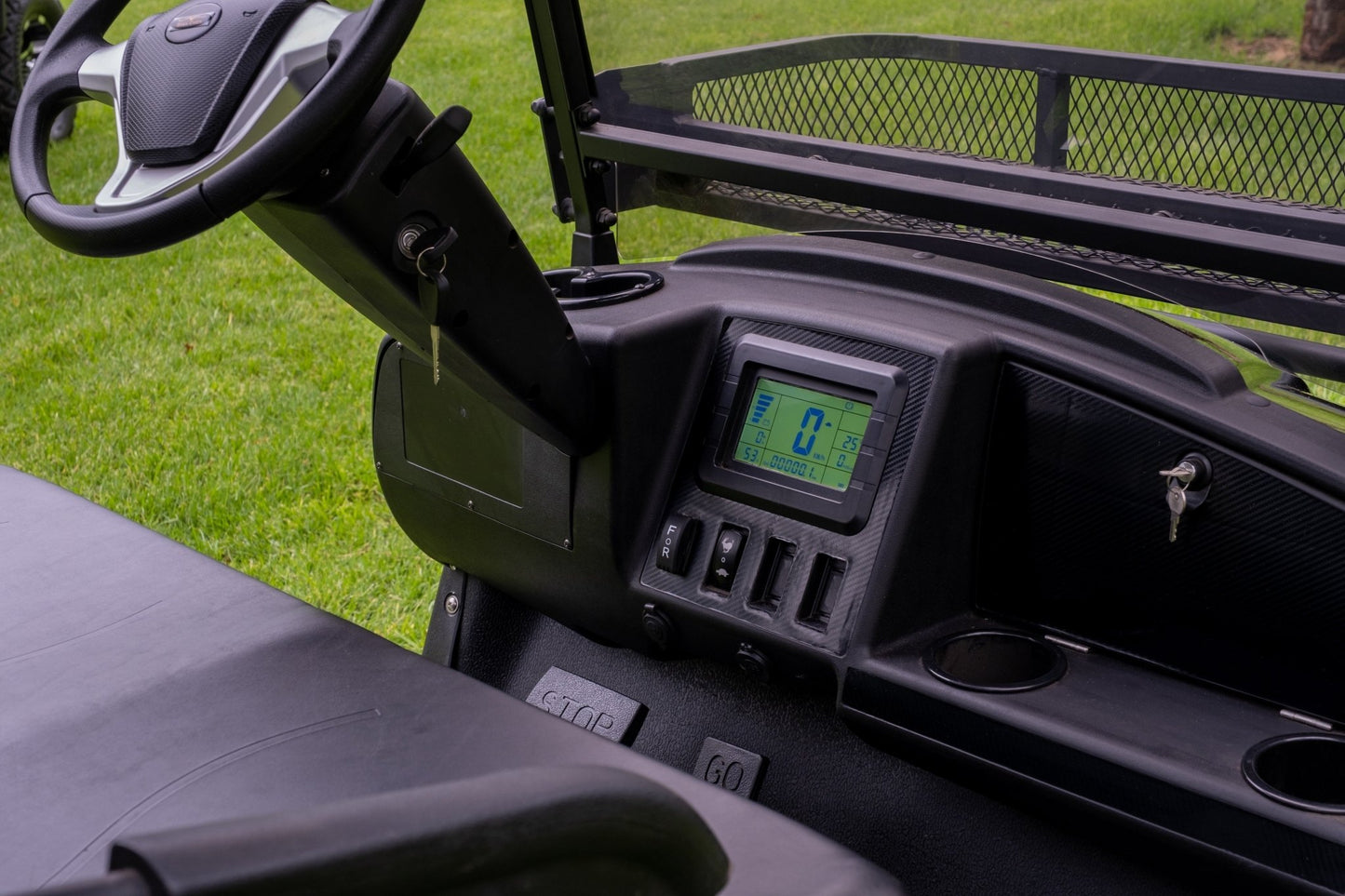

- Digital Dash -Speedo, Voltmeter, Ammeter
- Tinted Split windscreen
- Reinforced Aluminium Frame
- 12V/USB Outlets
- Rear Under Body Storage
- Reverse Buzzer
- High/Low Speed Switch
- Plastic underbody
Accessories
Accessories
- Petrol Generator - Range Extender
- Tow Hitch (reduces ground clearence)
- Front Nudge Bar
- Front Tray
- Side Rail Guards
- Momo Sports Steering Wheel
- Wet Weather Curtains
- Tie Down Points on Rear Tray
- Rhox Stereo sound system
- LED indicator side mirrors
- High back soft seats
- Hanging rack for tools
- LED Roof Mounted Light Bar
- LED Amber Roof Beacon
- Cruise Control
- Rear View Camera
- Winch - Front Mounted
- 6000W Inverter
- Seat Covers - Cool Dry
- 72V System Upgrade
- Diff Lock
