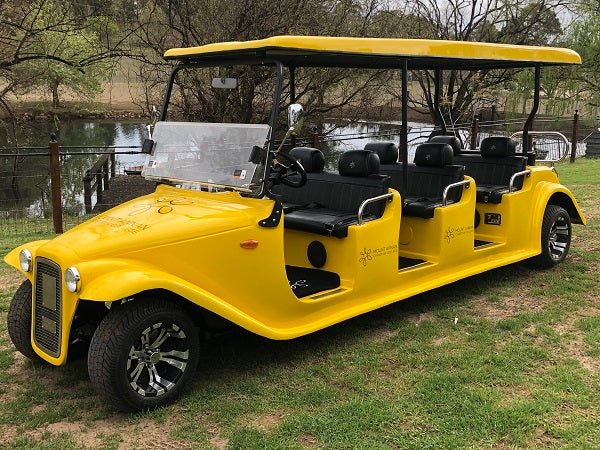

Roadster - 8 Seat
Roadster - 8 Seat
Performance
Performance
Maximum Speed: 30kmh
Maximum Travel Distance: 70km
Slope Climbing Capacity: 30%
Brake Range: 5m
Carrying Capacity: 720kg
Turning Radius: 4.5m
Weight: 670kg
Power Supply
Power Supply
Battery: 105Ah LiFePO4 Lithium
Motor: 48V5KW
Controller: American Curtis Electronics Controller
Accelerator: Adjustable Inductive Accelerator continuously variable speed system
Charger: On Board Charger 48V/18A
Suspension
Suspension
Suspension: Leaf spring with direct acting shock absorbers; Half independent suspension
Steering: Self compensating rack & pinion
Braking: Rear wheel mechanical drum brake & regeneration brake; Park brake
Drive Train: Rear Direct Drive
Chassis
Chassis
Overall Dimensions
Width: 1485mm
Length: 3140mm
Height: 1210mm
Dimensions
Dimensions
Overall Dimensions
Width: 1490mm
Length: 4740mm
Height: 1210mm
Standard Inclusions
Standard Inclusions
48V 5KW AC motor
48V 450A controller
105Ah LiFePO4 Lithium Battery
On Board Charger
Battery Monitor
Side mirrors
Full Light System
Speedo
12V outlet on the dash
Glove box
Chrome rear holder bar
Chrome front bumper
Half Glass Windscreen
Mag Wheels
Carpet Floor Mats
Chrome Sill Plates
Vinyl Seats
Cup Holders
Accessories
Accessories
Full Length Roof
Wet Weather Curtains
Split Windscreen
LED Amber Flashing Roof Light
Seat Belts
Stereo
Leather Seats
