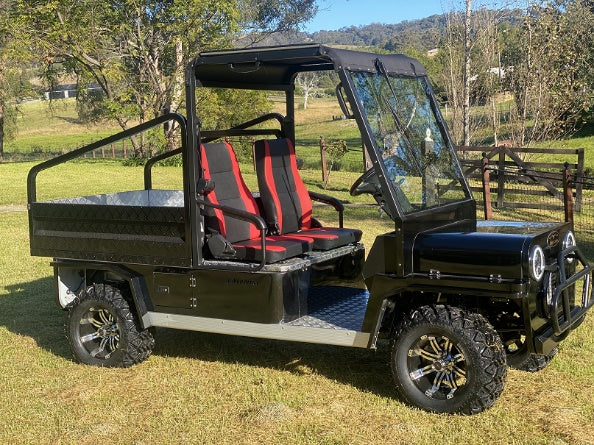

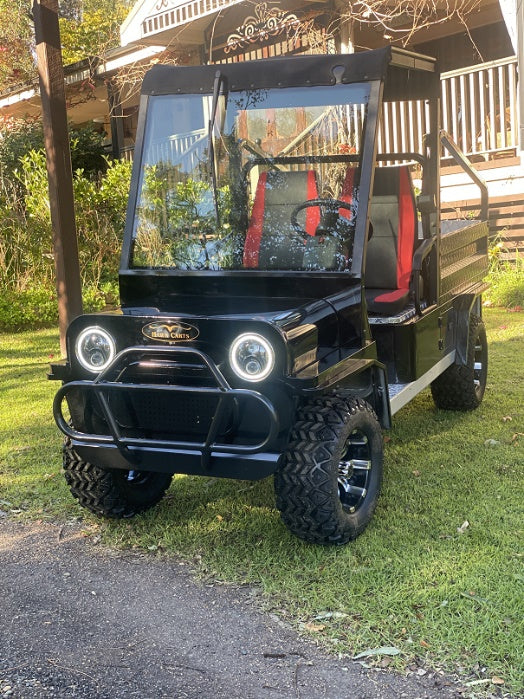

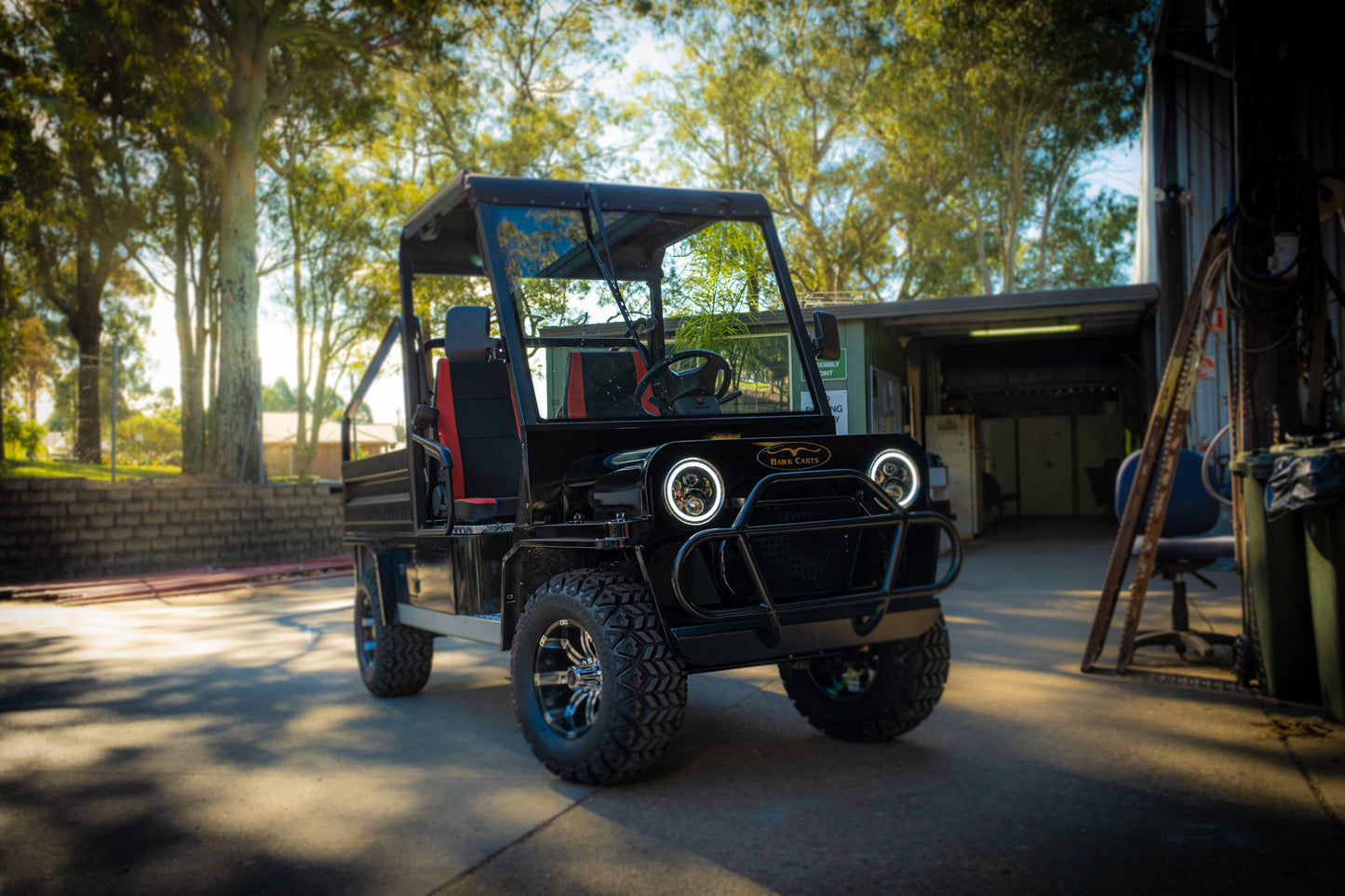

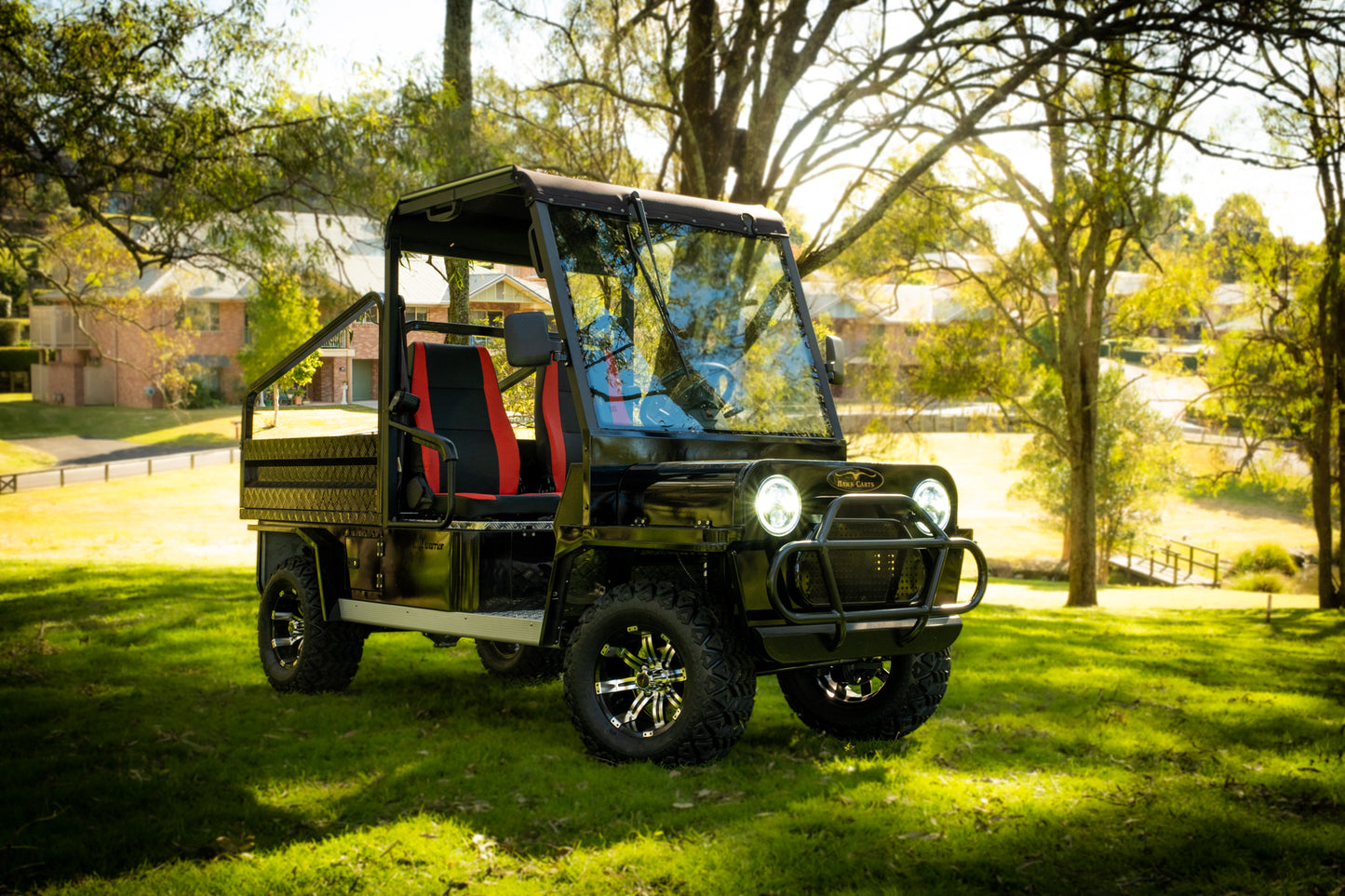

HAWK WILD WARRIOR UTV 10Kw 72V
This cart is capable of 250km per charge but when the battery gets to 25% the range extender generator will kick in and the cart will then travel another 100km. Travel distance will obviously reduce when the invertor is in use. The 6000W Invertor allows use of power tools in even the remotest of locations.

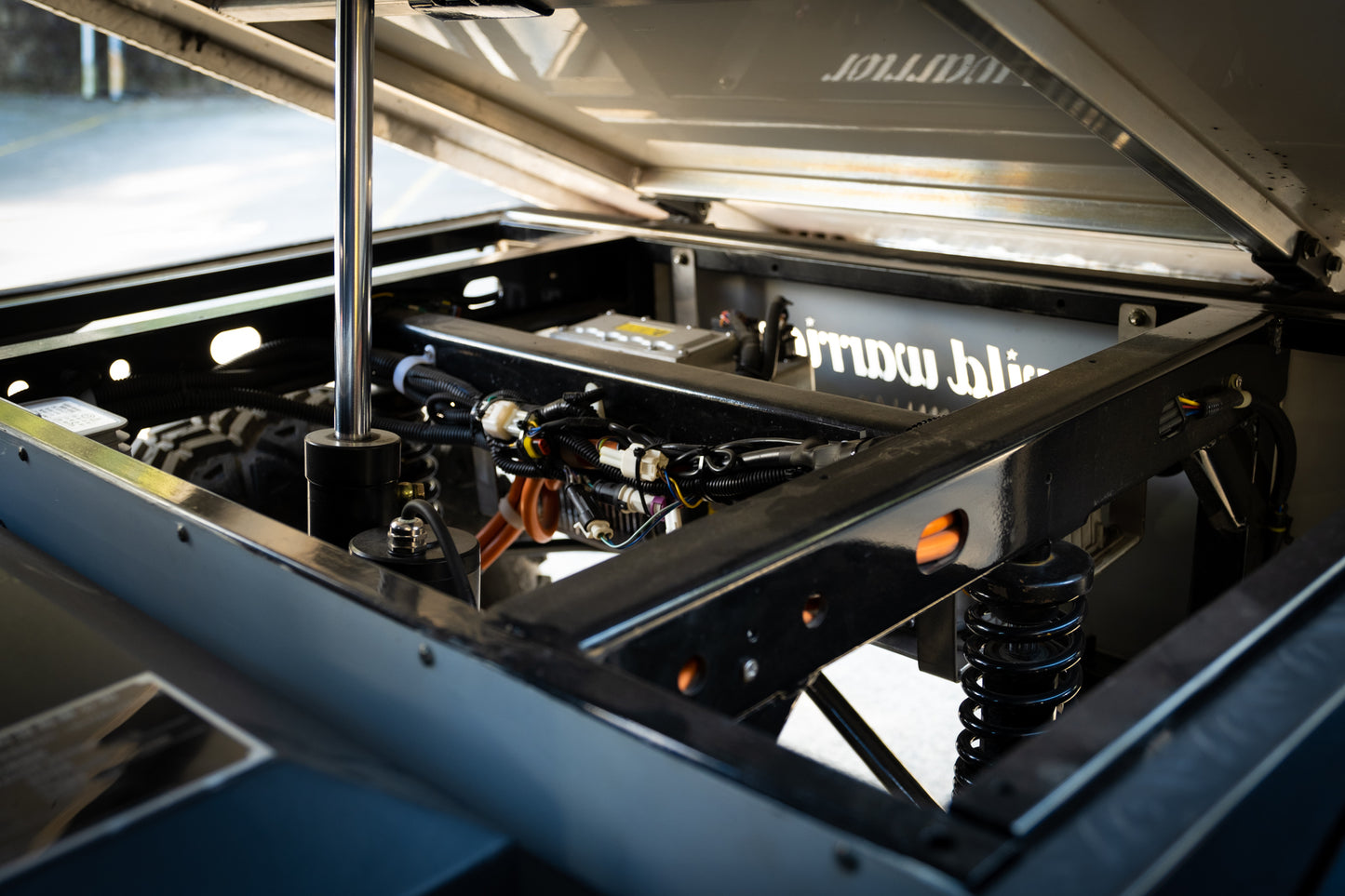

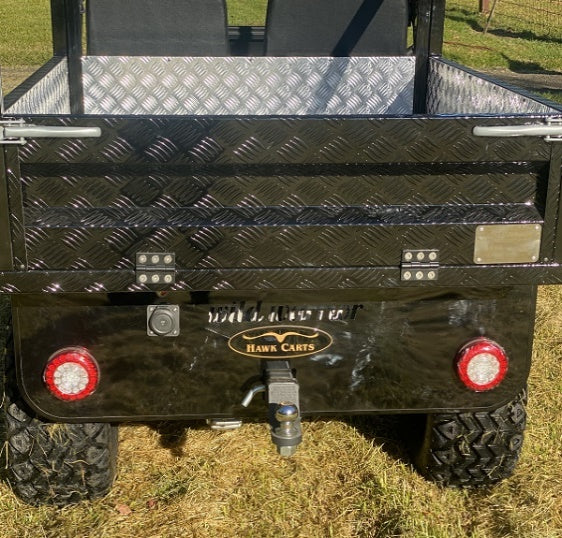

The cart will carry up to 250kg in the rear tray and includes an electric/hydraulic tray lift. It will tow up to 1.5 tonne with a ball weight of 200kg provided the trailer has independent brakes. We can set the cart up for electric brakes on the trailer.
Key Components
Key Components
Motor: Permanent magnet synchronous motor 10kw
Controller: Permanent magnet synchronous motor controller 72V 350A
Brake system: Front Disc / Rear Hub
Battery: Lithium-ion 76.8V 252AH
Accelerator: Non-contact angle sensor accelerator (completely sealed/patent product)
Charger: Smart 72V 30A charger (IP67 waterproof)
Rear axle: Three-stage transmission rear axle, with electromagnetic brake
Performance and Dimensions
Performance and Dimensions
Front/Rear wheel track: 1190/1280mm
Wheelbase: 2210mm
Ground clearance: 300mm
Minimun turning radius: 4.2m
Maximum speed: 1-40km/h adjustable, can add fast/slow gear switch
Gradeability: ≦30%
Range(flat ground): 250km （load 300kg)
Net weight: 560Kg (Not included battery)
Vehicle dimension(L*W*H): 3235*1310*1920 mm
Rear Tray dimension(L*W*H): 1200*1100*300mm
Standard configuration
Standard configuration
Vehicle exterior trimming: Sheet metal electrolytic board, DuPont spray paint coloring
Meter: Digital Meter, electric meter, speedo, fast speed, slow speed display

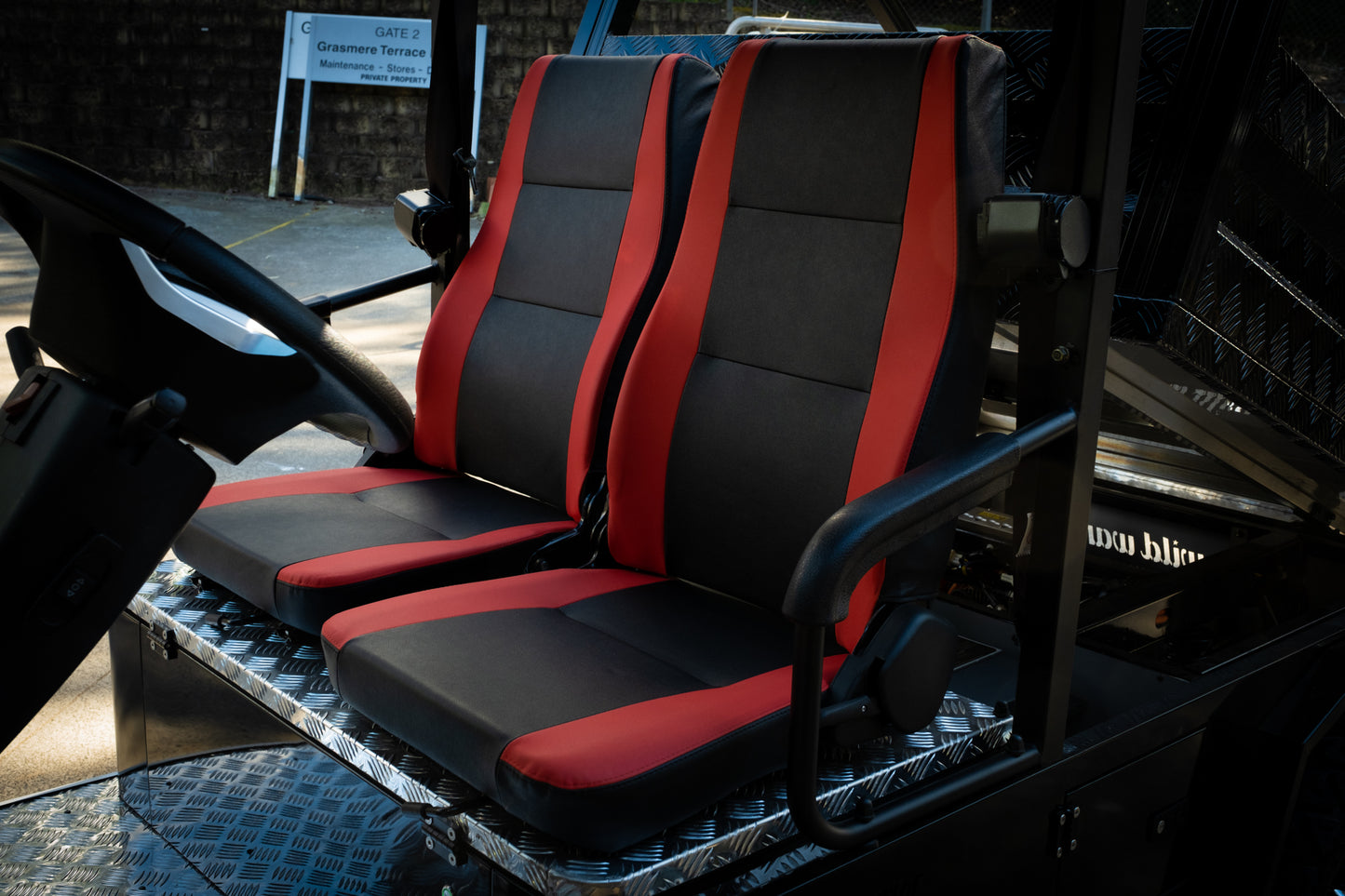

Seat: High back soft seat
Electric start lock: Equipped with standard key
Forward/backward gear switch: Waterproof rocker switch
Windshield: AS1 laminated glass
Vehicle color: Black, special colors will incur additional charge
Steering system: One-way gear, rack steering system (automatic clearance compensation function)

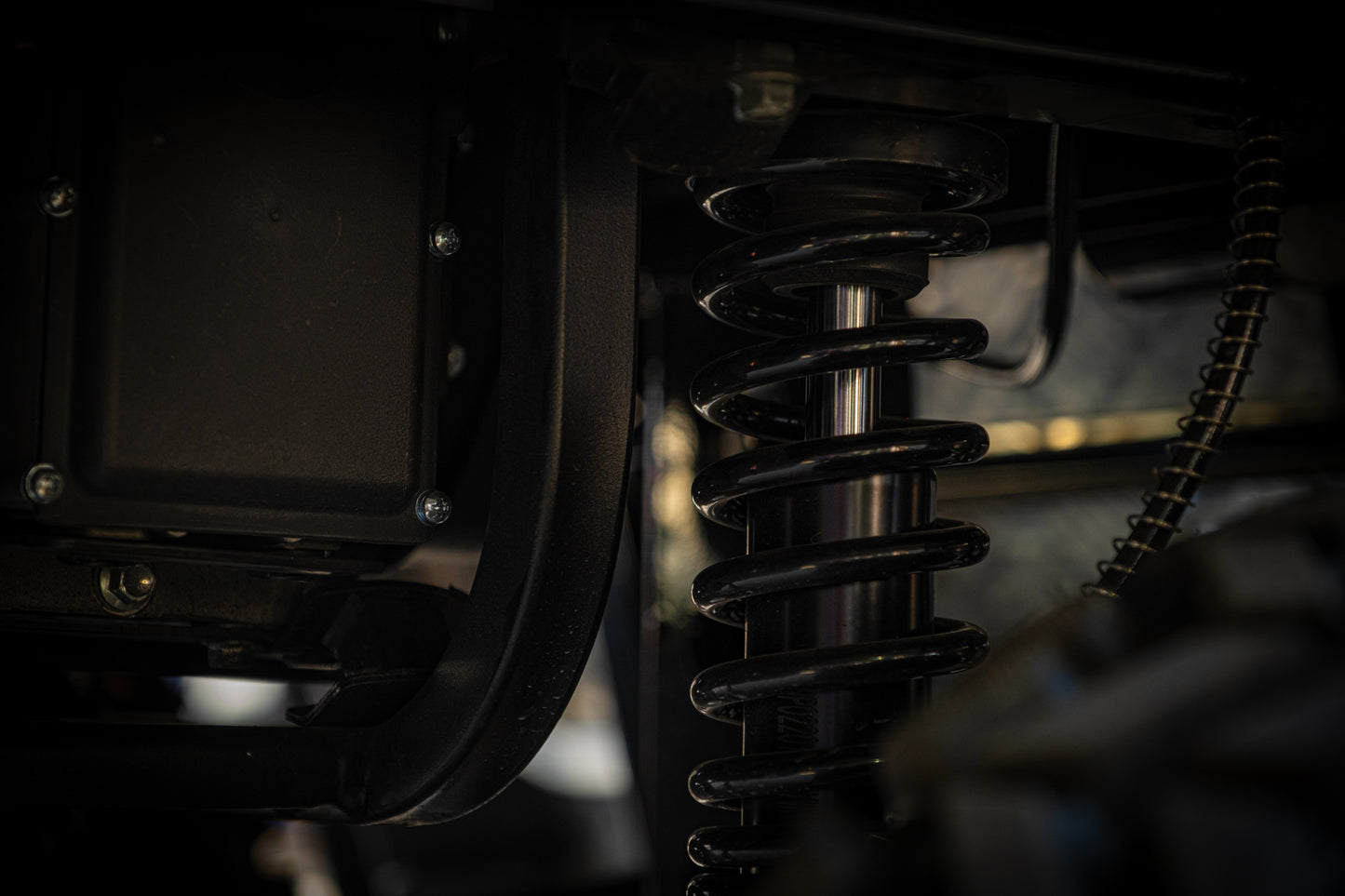

Front Suspension: Multi-link 2 independent coil spring suspension
Rear Suspension: Multi-link 2 independent coil spring suspension
Tyres: Wanda 23*10.5-12 tyres, off-road tread pattern
Bottom plate: Aluminum pattern bottom plate
Chassis: LG700XL steel beam, cathodic electrophoresis + plastic spray anti-rust
Aluminium Rim: 12" aluminium wheels
Seatbelts: Three-point
Range extender (petrol single cylinder engine): 72V 5KW Air-cooled
Accessories
Accessories
Cruise control
IP67 waterproof speaker (high-quality double speakers)
High and low speed selection
Electric power steering system (turning lamp automatic reset function + dial lock)
Hazard Lights

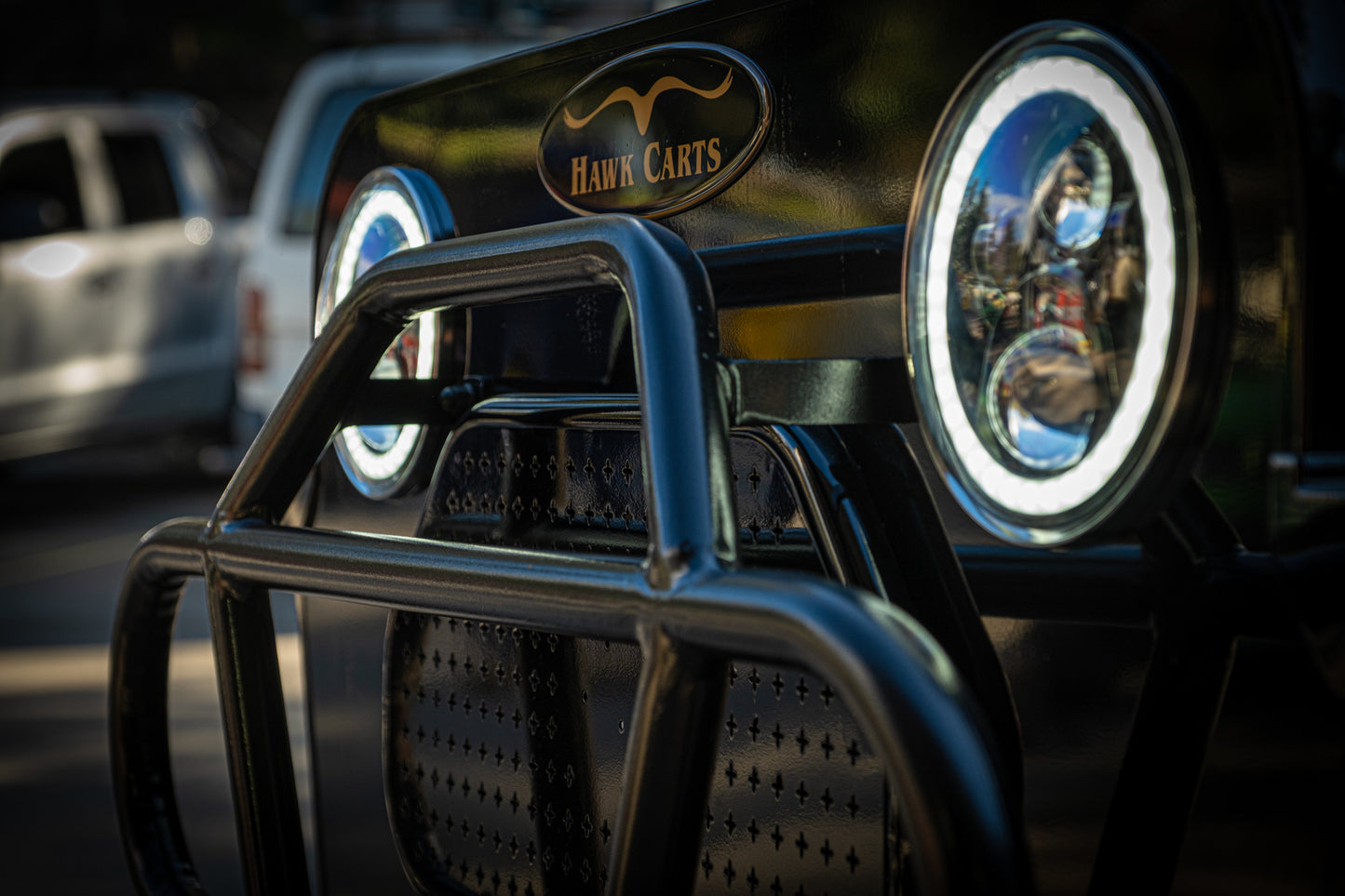

LED integrated headlights (IP67 waterproof rating, daytime running lights, turn signals)
Flashing Amber Roof Light
Tow Hitch
Controller unit with temperature control cooling fan
6000W Invertor
Wet weather curtains
Electric Brakes
Optional color
Optional color
Green
White
Red
Blue
Silver
Customized Color
