Hawk Carts

Single Seat Razorback

Single Seat Razorback


Maximum Speed: 20kmh

Maximum Travel Distance: 60km

Slope Climbing Capacity: ≥20%

Brake Range: 3-5m

Carrying Capacity: 150KG

Turning Radius: 3m

Weight: 220KG

Maximum Noise: 90dB

Power Supply

Battery: 53Ah Lithium

Motor: 36V 1.5Kw DC Permanent Magnet

Controller: American Curtis Controller 1229-3105

Accelerator: Electronic accelerator-Continuously variable speed system

Charger: 36V 18Amp


Front Suspension: Double swing arm independent suspension

Rear Suspension: Semi-independent suspension

Steering: Rack and pinion steering gear

Braking: Front wheel hydraulic disc; Rear wheel electro magnetic

Park Brake: Automatic Electro Brake


Chassis: Aluminium

Wheel Base: 1320mm

Front Wheel Tread: 750mm

Rear Wheel Tread: 770mm

Ground Clearance: 120mm

Overall Dimension (L*W*H): 1810*815*1760mm

Carrying Capacity: 150kg

Tyres:Carlisle Turf 16*6.5-8

Included Accessories

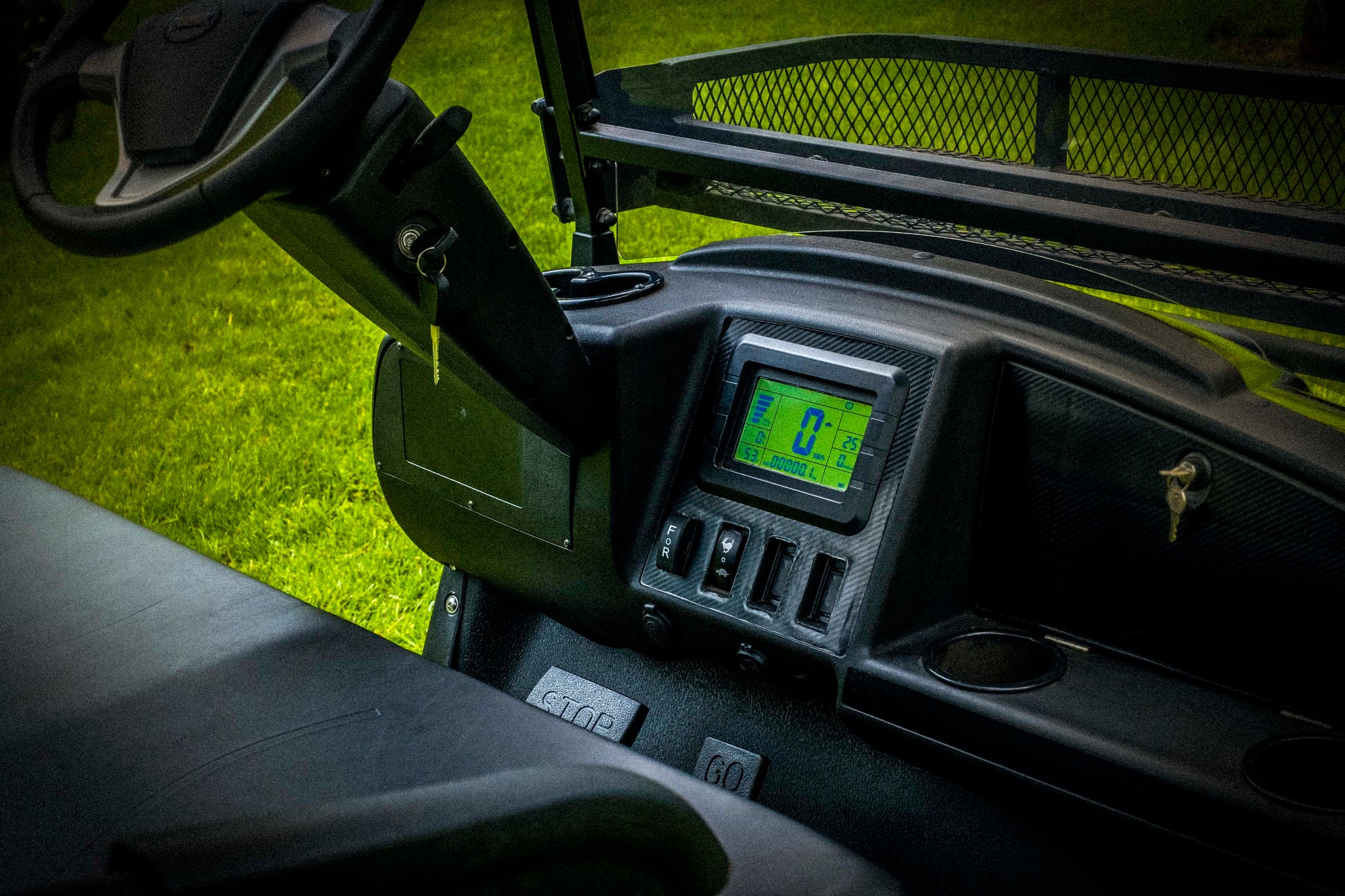

Speedo/Battery Gauge
Side mirrors
Split Windscreen Mag Wheels
Full light system

Available Accessories

Wet weather curtains
Seat Covers

View full details
