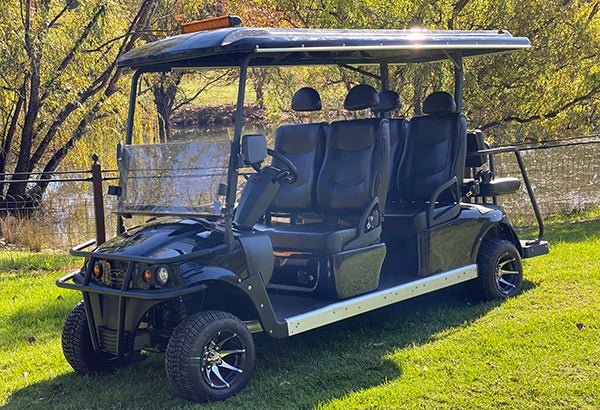

RAZORBACK 4+2 SEAT CART

Maximum Speed: 30kmh

Maximum Travel Distance: 80km

Slope Climbing Capacity: 1 in 3 grade (full load)

Turning Radius: 3.7m

Weight: 425kg

Battery: 8V170AH*6

Motor: 48V5KWAC

Controller: American Curtis Controller

Accelerator: Non-contact angle sensor accelerator

Charger: RD Internal Transformer type charger 48V 17A

Front: Double swing arm independent

Rear: Semi independent suspension - spring hydraulic cushioning

Steering: Self compensating rack & pinion,steering double output

Braking: 4 wheel disc brakes; Auto park brake

Chassis: High strength aluminium structural main girder

Wheel Base: 2470mm

Tyres: 22*10-12 4 Ply

Ground Clearance: 120mm

Ground Clearance: 1080mm
