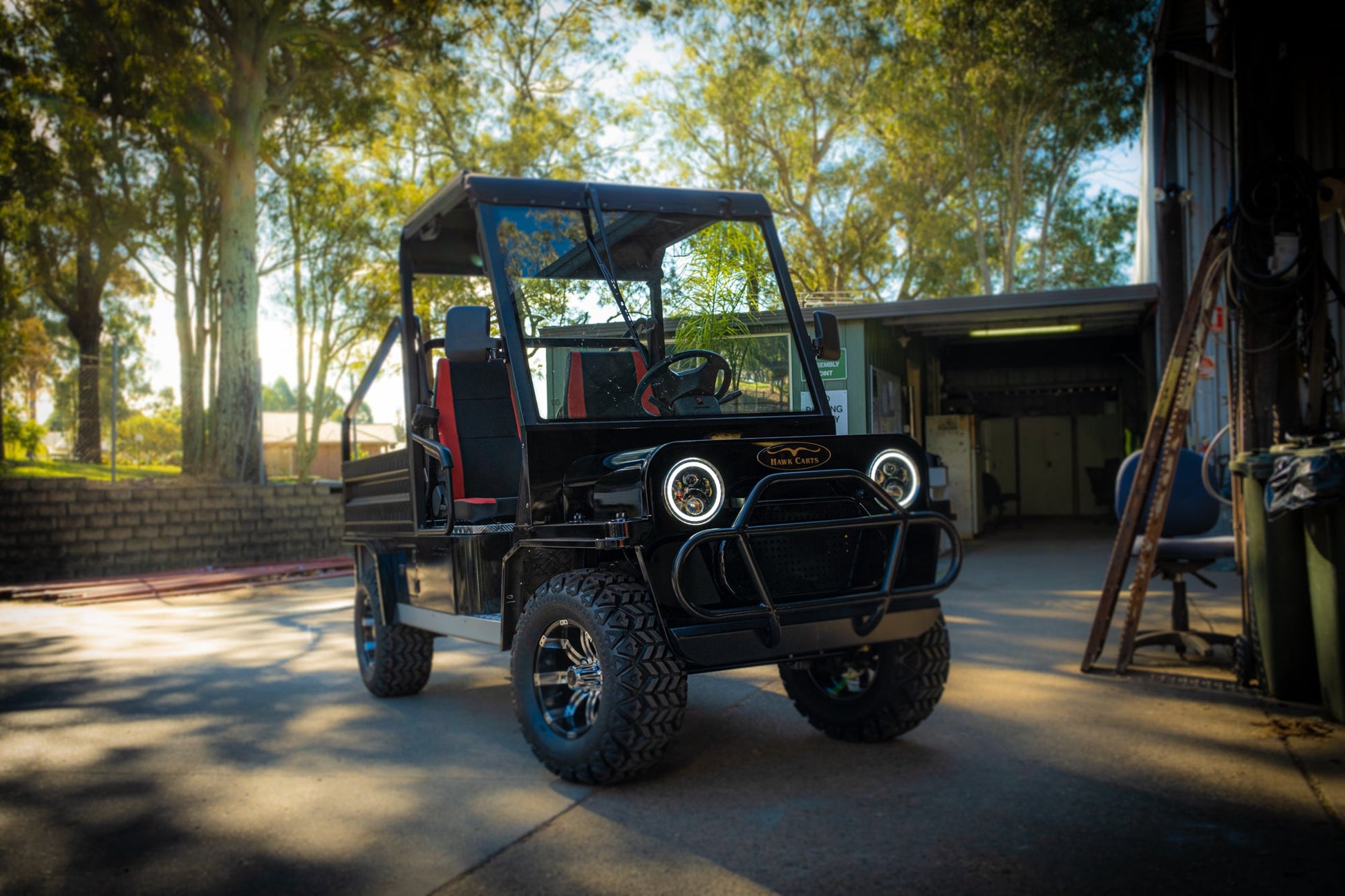

HAWK RAZORBACK WILD WARRIOR 5 Kw
HAWK RAZORBACK WILD WARRIOR 5 Kw
Couldn't load pickup availability
HAWK RAZORBACK WILD WARRIOR 5 Kw
This cart is capable of 250km per charge but when the battery gets to 25% the range extender generator will kick in and the cart will then travel another 100km. Travel distance will obviously reduce when the invertor is in use. The 6000W Invertor allows use of power tools in even the remotest of locations.
The cart will carry up to 500kg in the rear tray and 250kgs if using the electric/hydraulic tray lift. It will tow up to 2 tonne with a ball weight of 200kg provided the trailer has independent brakes. We can set the cart up for electric brakes on the trailer.
Key Components
Key Components
Motor: Permanent magnet synchronous motor 10kw
Controller: Permanent magnet synchronous motor controller 72V 350A
Brake system: Front disc rear hub
Battery: Lithium Iron 76.8V 252AH
Accelerator: Non-contact angle sensor accelerator (completely sealed/patent product)
Charger: Smart 72V 30A charger (IP67 waterproof)
Rear axle: Three-stage transmission rear axle, with electromagnetic brake, dif lock (aluminum alloy box)
Performance and Dimensions
Performance and Dimensions
Front/back wheel width: 1190/1280mm
Front/rear wheelbase: 2210mm
Ground clearance: rear axle 185mm/frame 300mm
Minimun turning radius: 4.2m
Maximum speed: 18-40km/h adjustable, can add fast/slow gear switch
Gradeability: ≦30%
Range(flat ground): 250km （load 300kg)
Net weight: 560Kg (Not included battery)
Vehicle dimension(L*W*H): 3235*1310*1920 mm
Rear Tray dimension(L*W*H): 1200*1100*300mm
Standard configuration
Standard configuration
Vehicle exterior trimming: Sheet metal electrolytic board, DuPont paint spray coloring
Meter: Digital Meter, electric meter, speed forward, backward, fast speed, slow speed display
Seat: High back soft seat
Electric start lock: Equipped with standard key
Forward/backward gear switch: Waterproof rocker switch
Windshield: AS1 laminated glass
Vehicle color: Ordinary color, special colors will incur additional charge
Steering system: One-way gear, rack steering system (automatic clearance compensation function), optional right rudder direction
Front cushioning: Multi-link 2 independent spring suspension front axle
Trailer switch: Maintenance is easier and faster
Rear cushioning: Multi-link 2 independent spring suspension front axle
Tire: Wanda 23*10.5-12 tires, off-road tread pattern
Bottom plate: Aluminum pattern bottom plate
Chassis: LG700XL steel beam, cathodic electrophoresis + plastic spray anti-rust
Aluminum Rim: 12" aluminum wheels
Seatbelts: Three-point
Range extender (gasoline single cylinder engine): 72V 5KW Air-cooled
Main Accessories
Main Accessories
Cruise control
IP67 waterproof speaker (high-quality double speakers)
High and low speed selection
Electric power steering system (turning lamp automatic reset function + dial lock)
Hazard Lights
LED integrated headlights (IP67 waterproof rating, daytime running lights, turn signals)
Flashing Amber Roof Light
Tow Hitch
Controller unit with temperature control cooling fan
6000W Invertor
Wet weather curtains
Co-pilot brake (optional)
Optional
Optional
Optional color
Optional color
Green
White
Red
Blue
Silver
Customized Color
