Hawk Carts

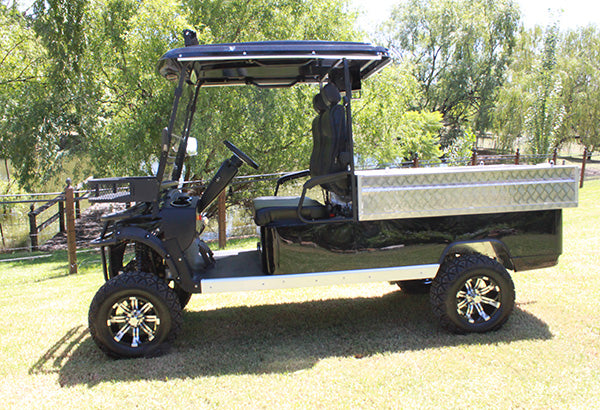

Hawk Razorback UTV LWB

Hawk Razorback UTV LWB

The Hawk Razorback Long Wheel Base (LWB) Utility Task Vehicle (UTV) is indeed a versatile and robust choice for various commercial settings. Here’s a summary of its features:

  • Extended Rear Tray: Provides ample space for transporting equipment and materials, making it ideal for golf courses and landscaping businesses.
  • Electric Lift Option: Facilitates easy loading and unloading, enhancing efficiency and reducing physical strain.
  • Full Digital Instrumentation: Allows for precise monitoring of vehicle performance and diagnostics.
  • Automatic Park Brake: Ensures the vehicle remains stationary when parked, adding an extra layer of safety.
  • 4 Wheel Hydraulic Disc Brakes: Delivers reliable braking power, crucial for a vehicle carrying heavy loads.
  • Aluminium Chassis: Offers a strong yet lightweight structure that contributes to the vehicle’s durability and longevity.
  • Top of the Range Clearance: Ensures smooth operation over various terrains, making it ideal for locations like airports, wineries, and caravan parks.

These features collectively make the Hawk Razorback LWB UTV a practical and reliable option for businesses that require a high-performance utility vehicle with a focus on safety and convenience. Whether it’s for a golf course or any other operation that involves extensive outdoor work, this vehicle is designed to meet a wide range of needs.

Performance

Maximum Speed: 30kmh

Maximum Travel Distance: 80km

Slope Climbing Capacity: 1 in 3 grade (full load)

Turning Radius: 4.5m

Weight: 575kg (including 65kg battery)

Power Supply

Battery: 48V 150AH Lithium-ion

Motor: 48V5KW AC

Controller: American Curtis Controller

Accelerator: Non-contact angle sensor accelerator

Charger: RD Internal Transformer type charger 48V 17A

Suspension

Front: Independent-suspension double swing arm system

Rear: Semi independent suspension - spring hydraulic cushioning

Steering: Self compensating rack & pinion, steering double output

Braking: 4 Wheel Hydraulic Disc brakes; Auto Park Brake

Chassis

Chassis: High Strength Aluminium Structural Main Girder

Wheelbase: 2400mm

Tyres: Wanda 23*10.5-12 4 Ply

Ground Clearance: 350mm

Standard Inclusions

5Kw AC Motor
4 Wheel Hydraulic Disc Brakes
Power Steering
Diff Lock
Tow Hitch
Electric/hydraulic Tray Lift
Rear Balance Bar
3 Point Seat Belts
Auto Park Brake
Regenerative braking
Lithium batteries
Curtis Controller
On Board Charger
Full light system including blinkers
Mag Wheels
Speedo/Voltmeter/Ammeter
Tinted Split windscreen
Reinforced Aluminium Frame
12V/USB Outlets
Rear Under Body Storage
Reverse Buzzer
High/Low Speed
Plastic underbody

Side Rail Guards

Accessories

Mine Spec including ROPS
Petrol Generator - Range Extender
Momo Sports Steering Wheel
Wet Weather Curtains
Tie Down Points on Rear Tray
Rhox Stereo sound system
LED Side mirrors
High back soft seats
Hanging rack for tools
LED Roof Mounted Driving Lights
Flashing Roof lights – front & rear
Cruise Control

Dimensions

Rear Cargo Dimensions

Width: 1050mm

Length: 1550mm

Height: 300mm

Front Tray Dimensions

Width: 1130mm

Length: 330mm

Height: 90mm

Overall Dimensions

Width: 1285mm

Length: 3500mm

Height: 2100mm
